Door Access
Product details Product Dimensions : 2.72 x 2.36 x 0.59 inches; 1.76 ounces Item model number : UT-PCB-501 Date First Available : December 22, 2015 Manufacturer : B27B ASIN : B019OO3Q4Y Product Description Advantage: Interlocking relay module is an implement for two doors egress controllilng ,such as bank, prison ect. When the first door opens and close properly, the second door will open. Interlocking relay module is the ideal choice for the purpose of interlocking door control project, which is easy to install,professional and durable. Parameter: Dimensions: 69Lx60Wx15H(mm) / 2.72Lx2.36Wx0.59H(in) Material: High quality elements with superb design Suitable for Door: Fail-safe electric locks with signal output Output Capability: Applied to double-door interlocking Operating temp: -20℃~+70℃ / -4℉~158℉ Max.overload: 5A/24V Weight: 0.07kg / 0.15lbPackage: 1 x Interlock Module of two doors
Product description Features of access control board: Communication: TCP/IP Software Supportable Database: Access & SQL Power Supply Input: DC/12V Input Format of Reader: Wiegand 26-40 bit (All 125KHz or 13.56MHz card reader with compatible protocol)Quantity of Readers: 4 units Door Controlled: 4 door (Get in the door by swiping card, and get out door by button) Quantity of Users: 20,000 users Quantity of Event Buffers (offline): 100,000 event buffers Max Distance from Reader to Controller: 328ft (100m) [suggestion distance 262ft (80m)] Alarm for Long Time Door Open, Unlawful Entry, Intimidate Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm Compulsive open and close door at long time: Yes Open door in remote distance: Yes Inter block: Yes Anti pass back and tail: Yes Multi card open door: Yes Open long time at specified time: Yes Urgency locking: Yes First card unlocking: Yes Features of power box: Built-in reverse surge protection and Short-circuit protection function With charge and discharge function,can add a 7AH 12V lead-acid battery, can meet the needs of an electric mortise lock, a card reader and a controller to work 35 hours after power failure (External battery is not included) Setting automatic protection function, built-in fuse Two +12V and two GND terminals Package: 1 x Access Control Board 1 x Metal Power Box 1 x User ManualNote: PC operate system: Windows, not compatible with MAC computers. Easy of Management: All access devices support a mixed installation. With the support and attendance software, on-line patrol function Support multi-user multi-mashing management and monitoring in real-time Conventional functions: Offline operation Real time supervision Photo display when valid card Mass storage Flexible user privilege setup Remote unlocking Multi-user supervision Quick setting Convenience checking and query. Revisable and printable report form Report can be exported to excel file Multi ways access Alarm for long time opening Alarm for invalid card swiping Alarm for unlawful entry Unlocking at definite time e-map Professional functions: Interface locking Intimidation alarm Integrated fire control Anti passback and anti tail Interlocking Multi-card unlocking Emergency double locking Indoor population checking Unlocking based on internal and external validation More Details: Support Expansion Board: Please search ASIN B00UX02NDY to get the expansion board. Wiring Diagram: This demo is for fail safe lock. Need to connect to NO port of the controller if the lock is fail secure mode. Power Supply: Power: 40WCharging Overload: Yes12V/24V Adjustable Output: NoDimensions: 10-63/64"x9-7/32"x2-41/64" (279x234x67mm)Can be built-in battery for backup power, it has charging overload protection, can stop charging when full power.

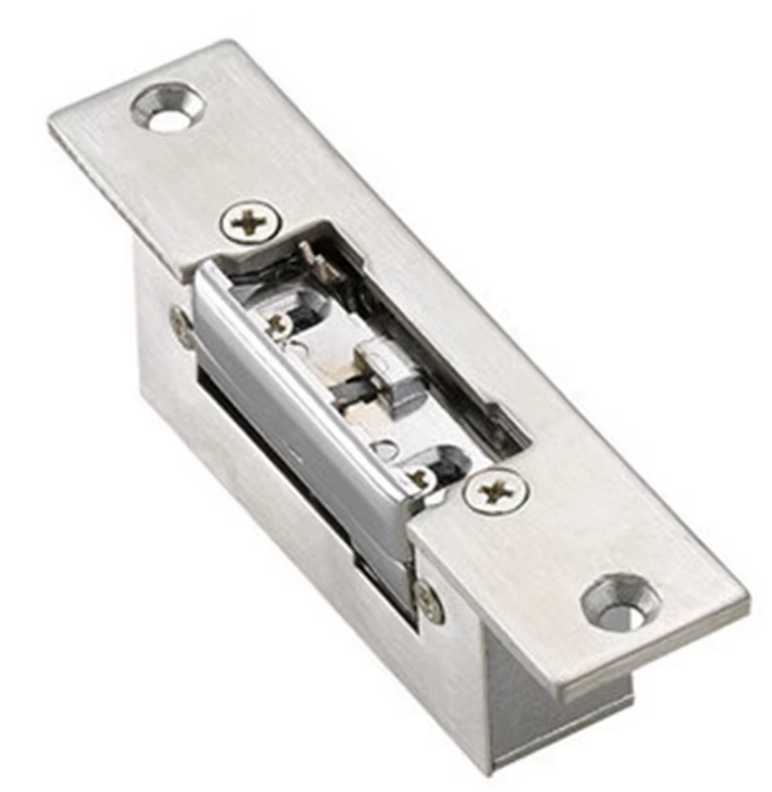

Advantage: Field-selectable for fail-safe or fail-secure operationSuitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door Enhanced stress structure design 1000000 solenoid valve special design Power to open the door or door adjustable power supply Specifications: Faceplate Dimensions (LxW): 9-1/16"x1-19/32" (230x40.5mm)Strike Opening: 1-37/64"x1-5/32"x15/16" deep (39.9x29.5x24mm deep)lock tongue structure: 304 Stainless Steel Holding Force: 1100lbs (500kg) Voltage: DC12V Current: 12V/220mA Signal Output: Lock Status Output NO/NC/COM Special design: applies to all brands of fire push rod lock Suitable For: Supporting rod lock fire door Surface Temperature: Within 68℉ (20℃)Suitable Temperature: 14℉-131℉ (-10℃~55℃)Operating Humidity: 0~90%(non-condensing) Face plate Housing: High temperature paint Lock tongue: Surface by coating nickel The door open: 90 degrees Weight: 1.65lbs (0.75kg) Package: 1 x Electric strike lock designed for rim exit devices1 x Install kit1 x User manual Installation Diagram: Special design: Applies to all brands of fire push rod lockPush panic bar need buy seperately Singal Output: Door Status: NC contact output: open status NO contact output: closed status Lock or Unlocked Status: NO contact output: unlocked status NC contact output: locked status Operation Mode Adjustable: You can set the operation mode Fail Safe or Fail Secure.Please check the working mode before install. Attention: For Indoor use OnlyFaceplate Dimensions (LxW): 9-1/16"x1-19/32" (230x40.5mm)Before placing order, please check the size of your door’s frame to avoid wrong purchase.
