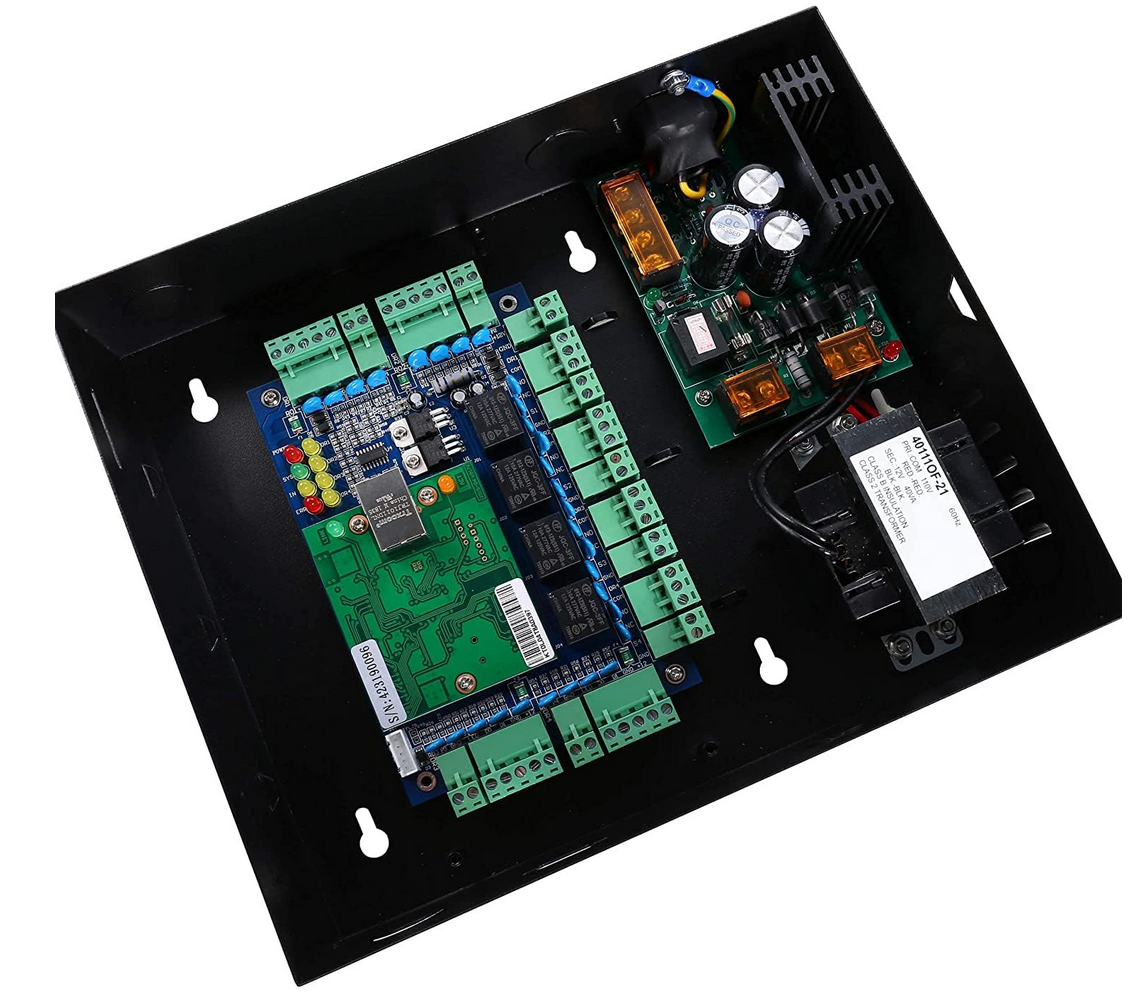

Power Supply Box Input AC110V Output 12VDC Including Wiegand 26-40 bit Access Control Board

Skip image gallery

$230.00

No longer available

Product number: DV_PS_Wiegand2640

Product information "Power Supply Box Input AC110V Output 12VDC Including Wiegand 26-40 bit Access Control Board "

Product description

HBK-D01 Reader

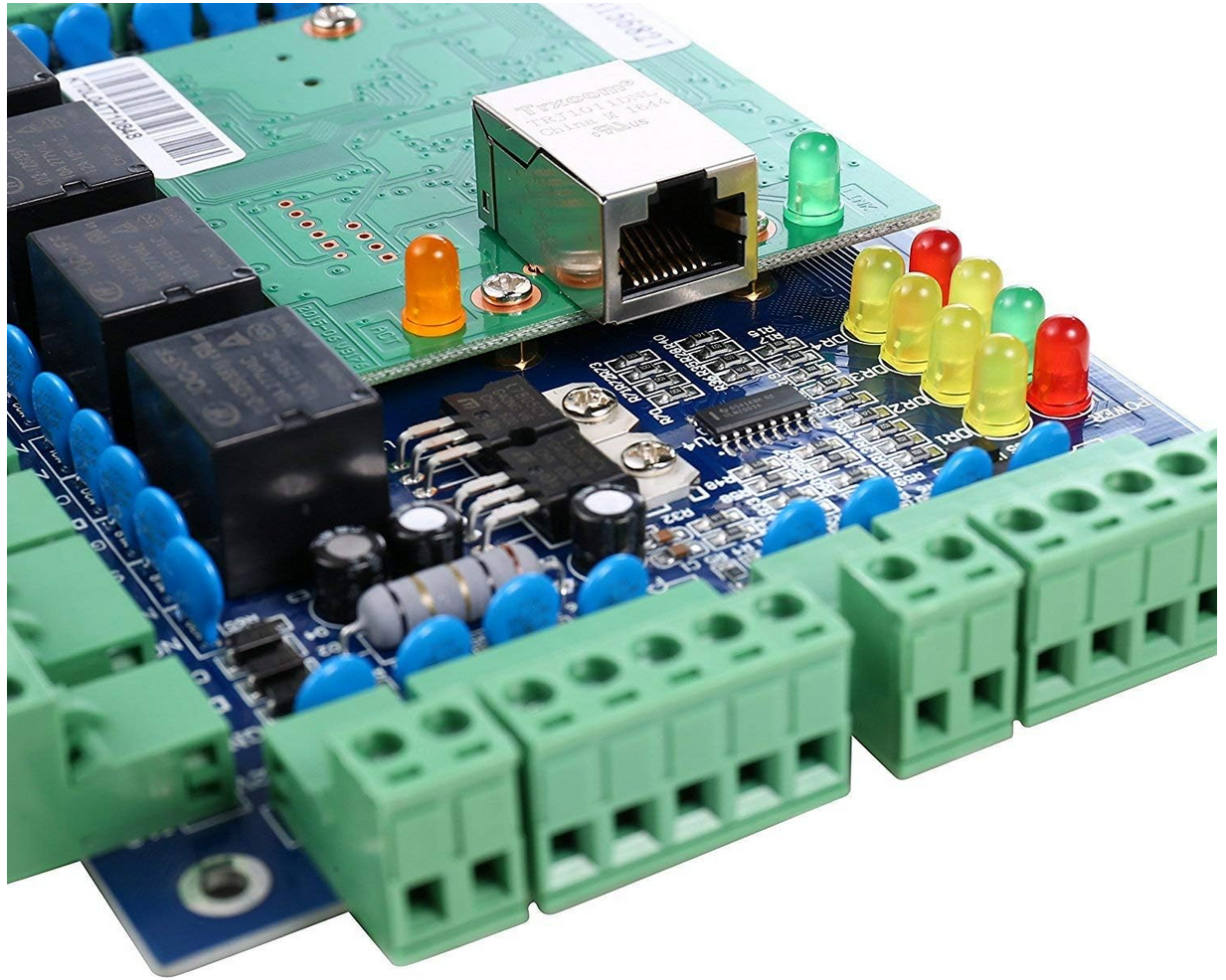

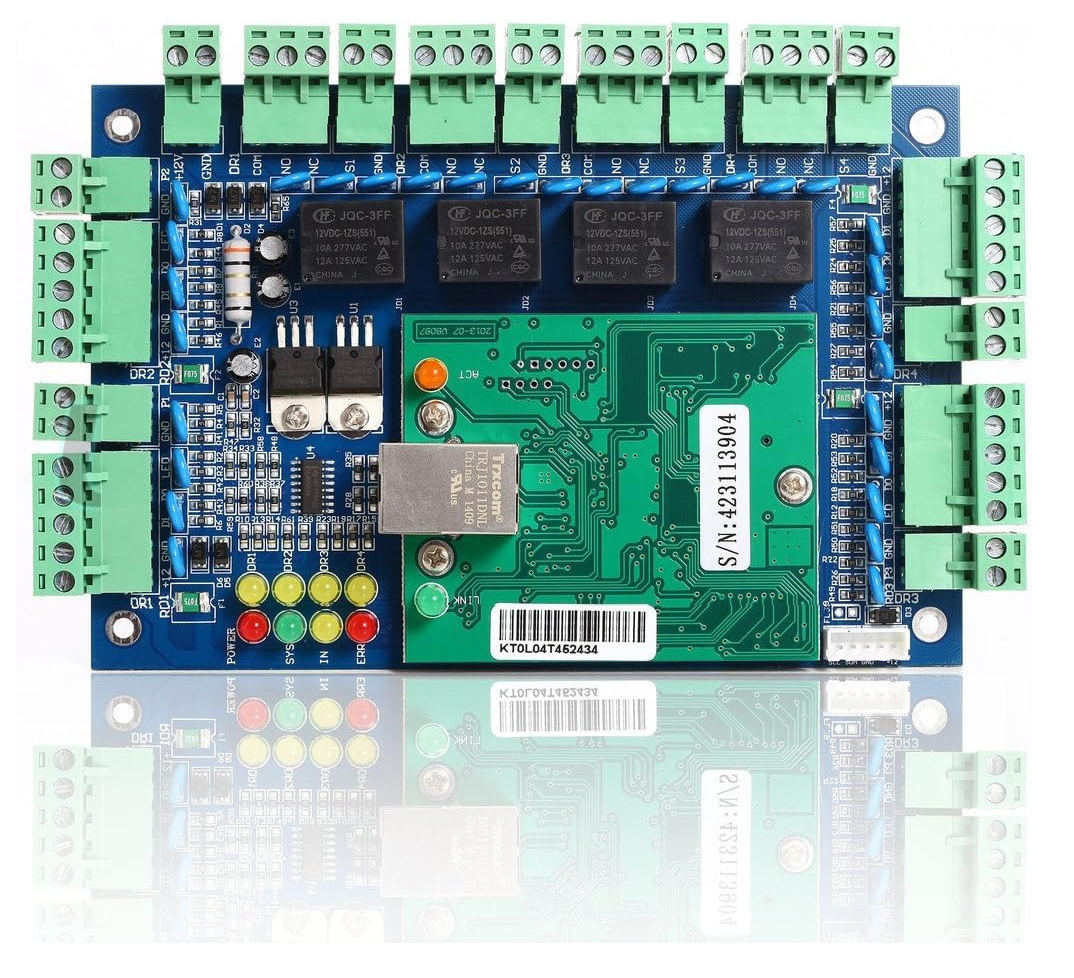

Features of access control board:

  • Communication: TCP/IP
  • Software Supportable Database: Access & SQL
  • Power Supply Input: DC/12V
  • Input Format of Reader: Wiegand 26-40 bit (All 125KHz or 13.56MHz card reader with compatible protocol)
  • Quantity of Readers: 4 units
  • Door Controlled: 4 door (Get in the door by swiping card, and get out door by button)
  • Quantity of Users: 20,000 users
  • Quantity of Event Buffers (offline): 100,000 event buffers
  • Max Distance from Reader to Controller: 328ft (100m) [suggestion distance 262ft (80m)]
  • Alarm for Long Time Door Open, Unlawful Entry, Intimidate
  • Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
  • Compulsive open and close door at long time: Yes
  • Open door in remote distance: Yes
  • Inter block: Yes
  • Anti pass back and tail: Yes
  • Multi card open door: Yes
  • Open long time at specified time: Yes
  • Urgency locking: Yes
  • First card unlocking: Yes

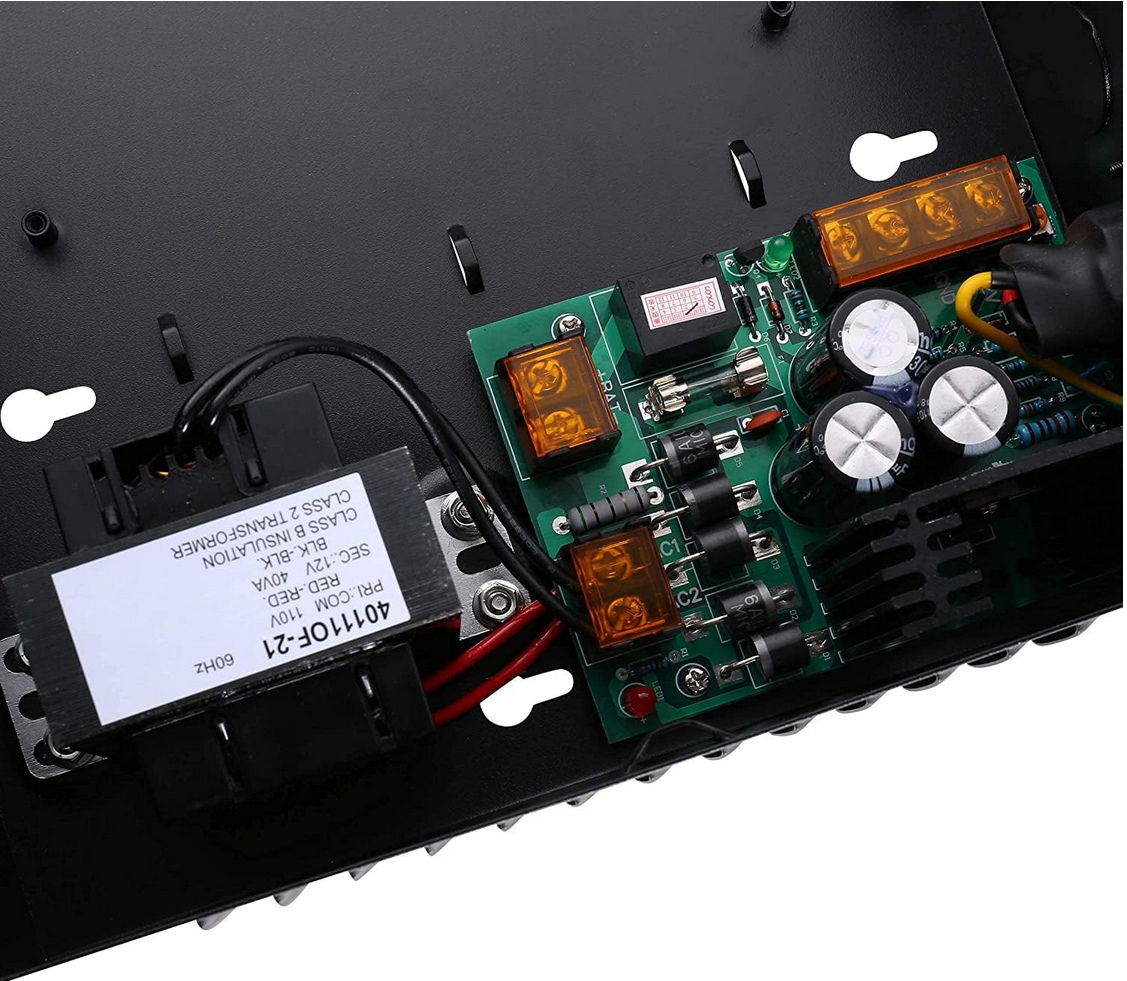

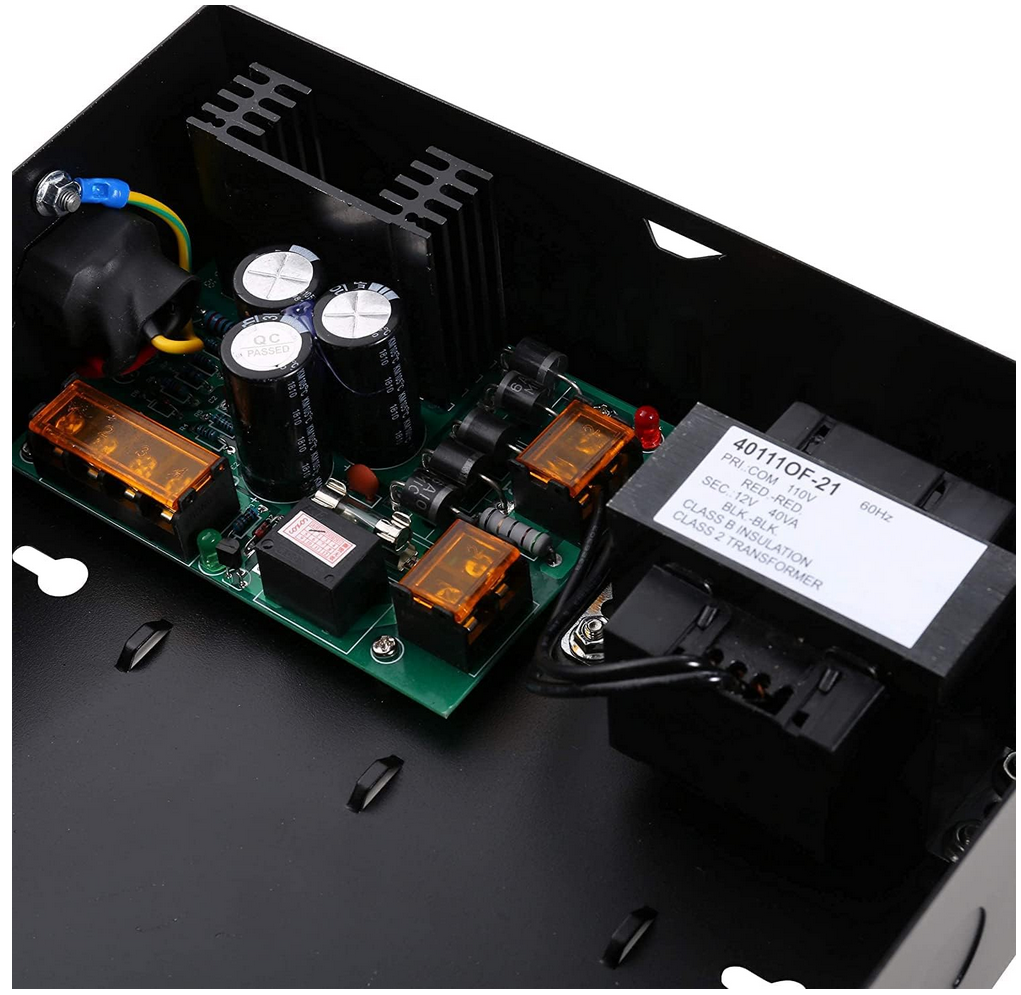

Features of power box:

  • Built-in reverse surge protection and Short-circuit protection function
  • With charge and discharge function,can add a 7AH 12V lead-acid battery, can meet the needs of an electric mortise lock, a card reader and a controller to work 35 hours after power failure (External battery is not included)
  • Setting automatic protection function, built-in fuse
  • Two +12V and two GND terminals

Package:

  • 1 x Access Control Board

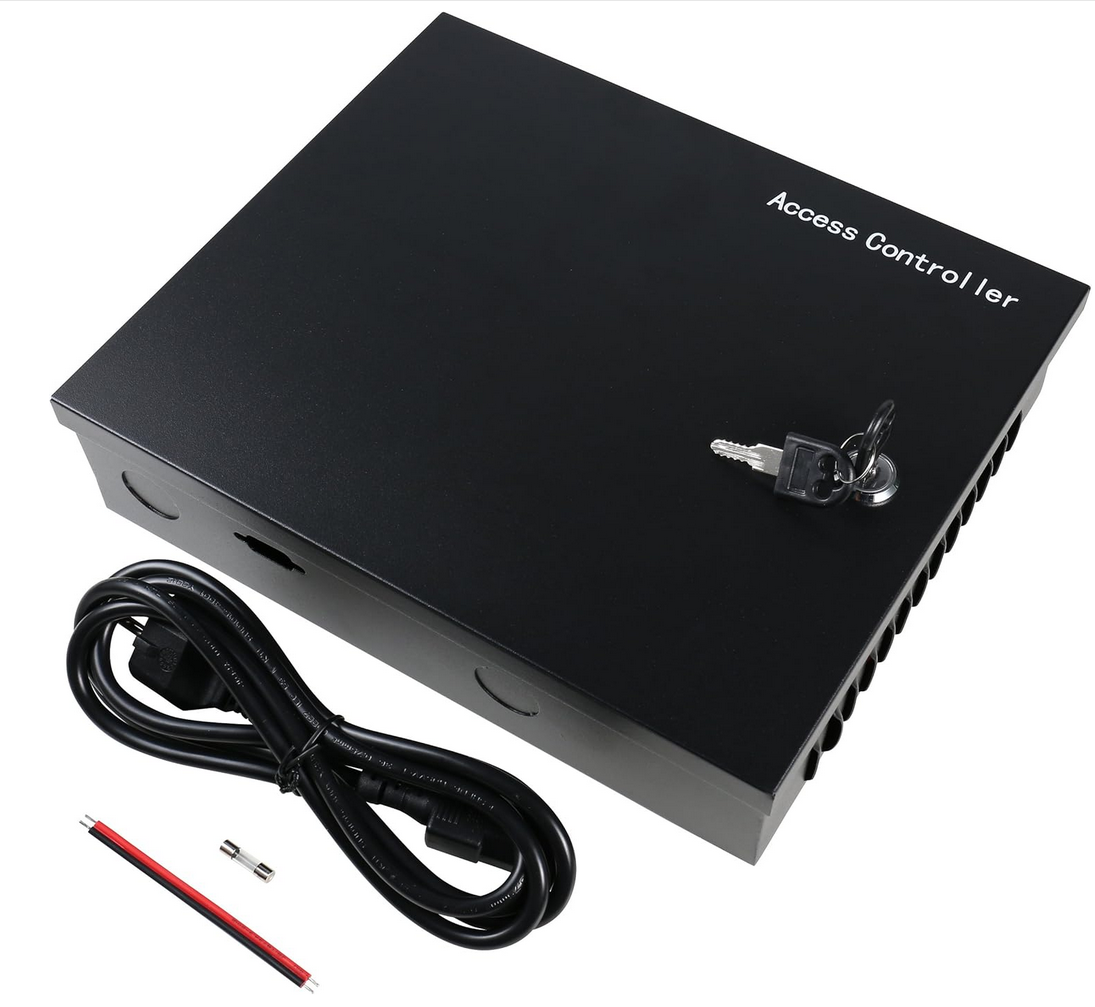

  • 1 x Metal Power Box
  • 1 x User Manual
  • Note: PC operate system: Windows, not compatible with MAC computers.

Easy of Management:

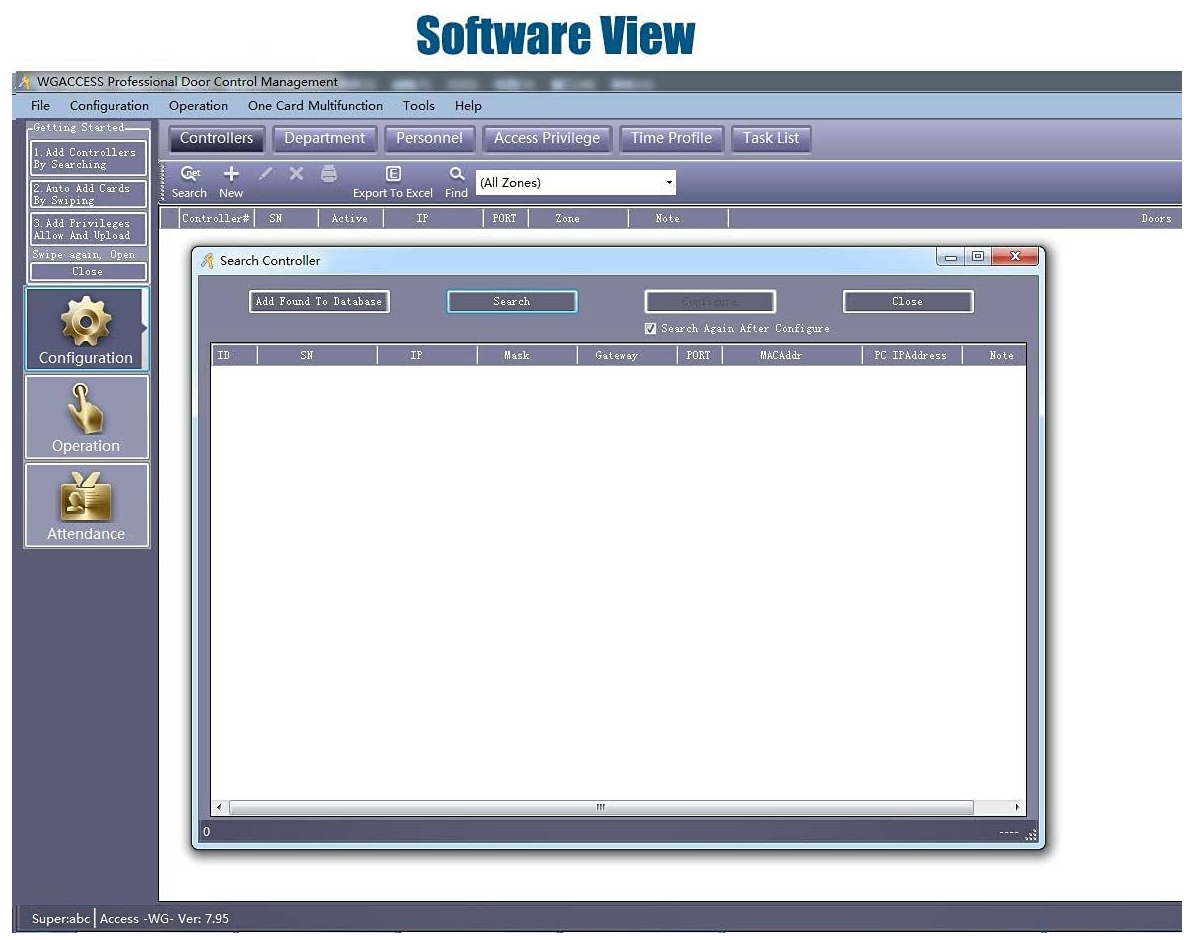

  • All access devices support a mixed installation. With the support and attendance software, on-line patrol function Support multi-user multi-mashing management and monitoring in real-time

Conventional functions:

  • Offline operation
  • Real time supervision
  • Photo display when valid card
  • Mass storage
  • Flexible user privilege setup
  • Remote unlocking
  • Multi-user supervision
  • Quick setting
  • Convenience checking and query.
  • Revisable and printable report form
  • Report can be exported to excel file
  • Multi ways access
  • Alarm for long time opening
  • Alarm for invalid card swiping
  • Alarm for unlawful entry
  • Unlocking at definite time
  • e-map

Professional functions:

  • Interface locking
  • Intimidation alarm
  • Integrated fire control
  • Anti passback and anti tail
  • Interlocking
  • Multi-card unlocking
  • Emergency double locking
  • Indoor population checking
  • Unlocking based on internal and external validation

More Details:

Support Expansion Board:

  • Please search ASIN B00UX02NDY to get the expansion board.

Wiring Diagram:

  • This demo is for fail safe lock. Need to connect to NO port of the controller if the lock is fail secure mode.

1

Power Supply:

  • Power: 40W
  • Charging Overload: Yes
  • 12V/24V Adjustable Output: No
  • Dimensions: 10-63/64"x9-7/32"x2-41/64" (279x234x67mm)
  • Can be built-in battery for backup power, it has charging overload protection, can stop charging when full power.
