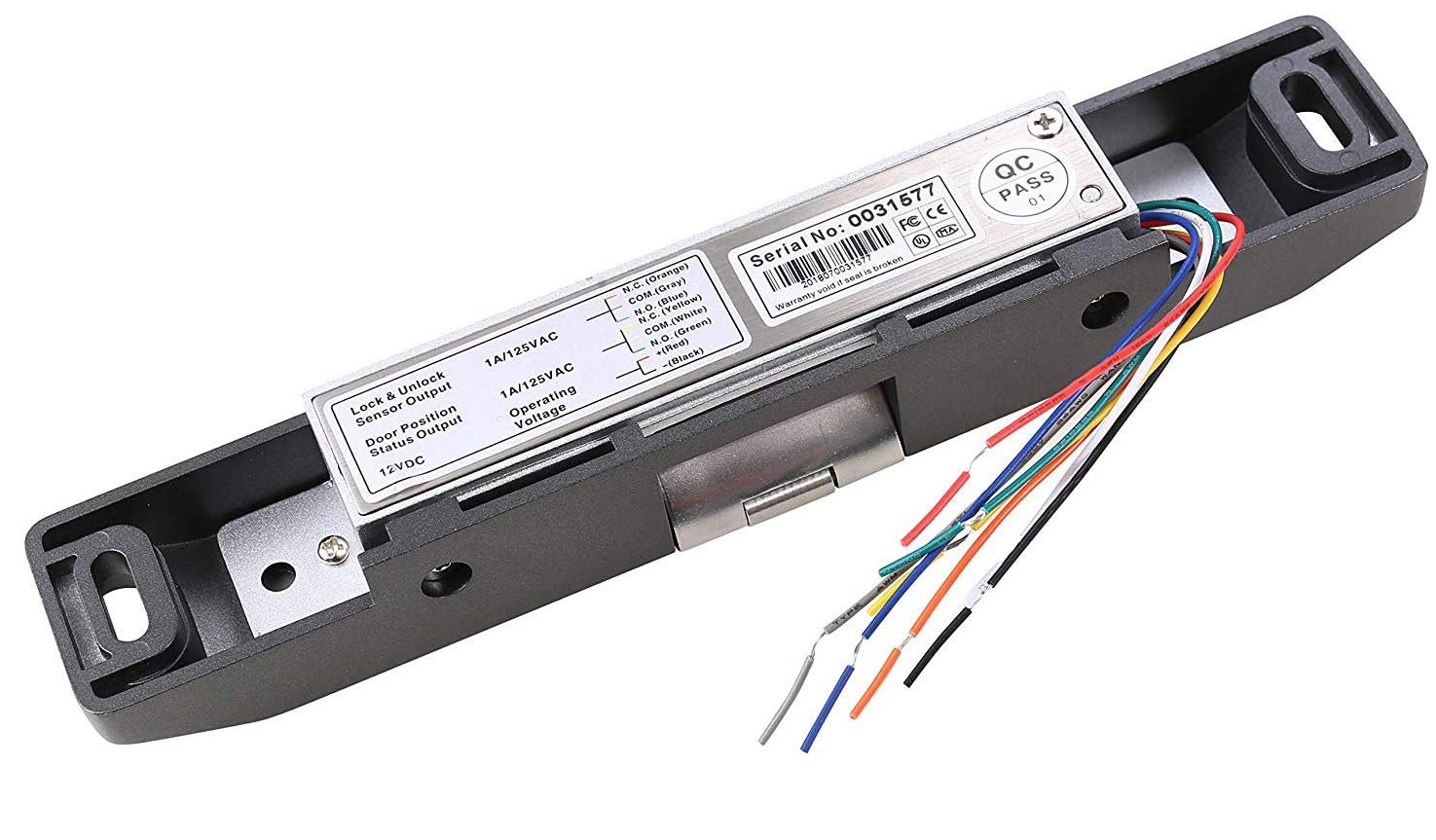

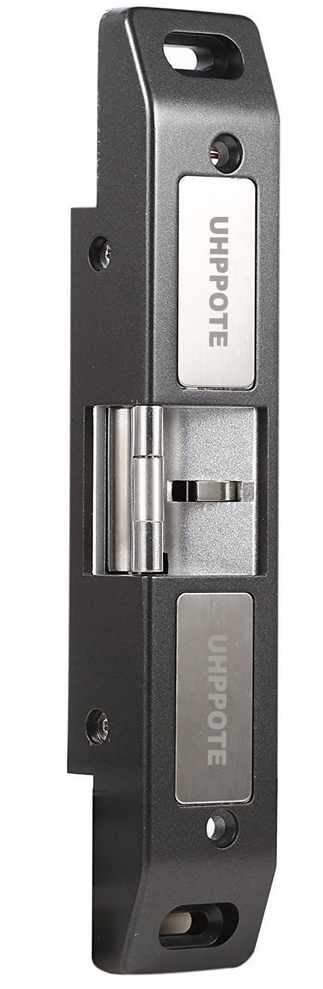

UHPPOTE Electric Strike Lock 12VDC for Access Control Fire Exit Door Rim Exit Devices with Push Bar

Skip image gallery

$95.00

Product number: B06XWY91HQ

Product information "UHPPOTE Electric Strike Lock 12VDC for Access Control Fire Exit Door Rim Exit Devices with Push Bar"

Advantage:

  • Field-selectable for fail-safe or fail-secure operation
  • Suitable for fire exit door with Push-rod lock.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door
  • Enhanced stress structure design
  • 1000000 solenoid valve special design
  • Power to open the door or door adjustable power supply

Specifications:

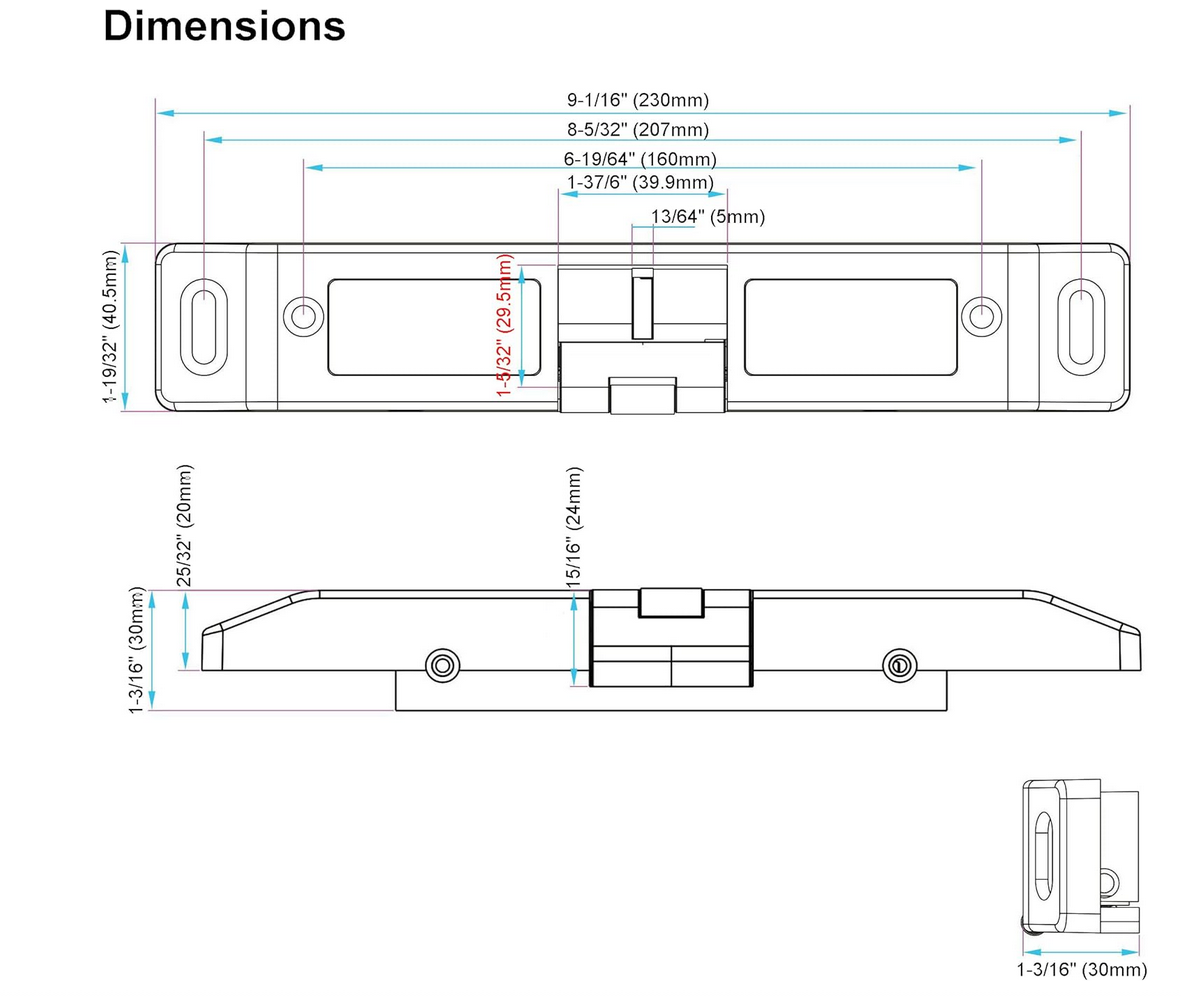

  • Faceplate Dimensions (LxW): 9-1/16"x1-19/32" (230x40.5mm)
  • Strike Opening: 1-37/64"x1-5/32"x15/16" deep (39.9x29.5x24mm deep)
  • lock tongue structure: 304 Stainless Steel
  • Holding Force: 1100lbs (500kg)
  • Voltage: DC12V
  • Current: 12V/220mA
  • Signal Output: Lock Status Output NO/NC/COM
  • Special design: applies to all brands of fire push rod lock
  • Suitable For: Supporting rod lock fire door
  • Surface Temperature: Within 68℉ (20℃)
  • Suitable Temperature: 14℉-131℉ (-10℃~55℃)
  • Operating Humidity: 0~90%(non-condensing)
  • Face plate Housing: High temperature paint
  • Lock tongue: Surface by coating nickel
  • The door open: 90 degrees
  • Weight: 1.65lbs (0.75kg)

Package:

  • 1 x Electric strike lock designed for rim exit devices
  • 1 x Install kit
  • 1 x User manual

aplus content image

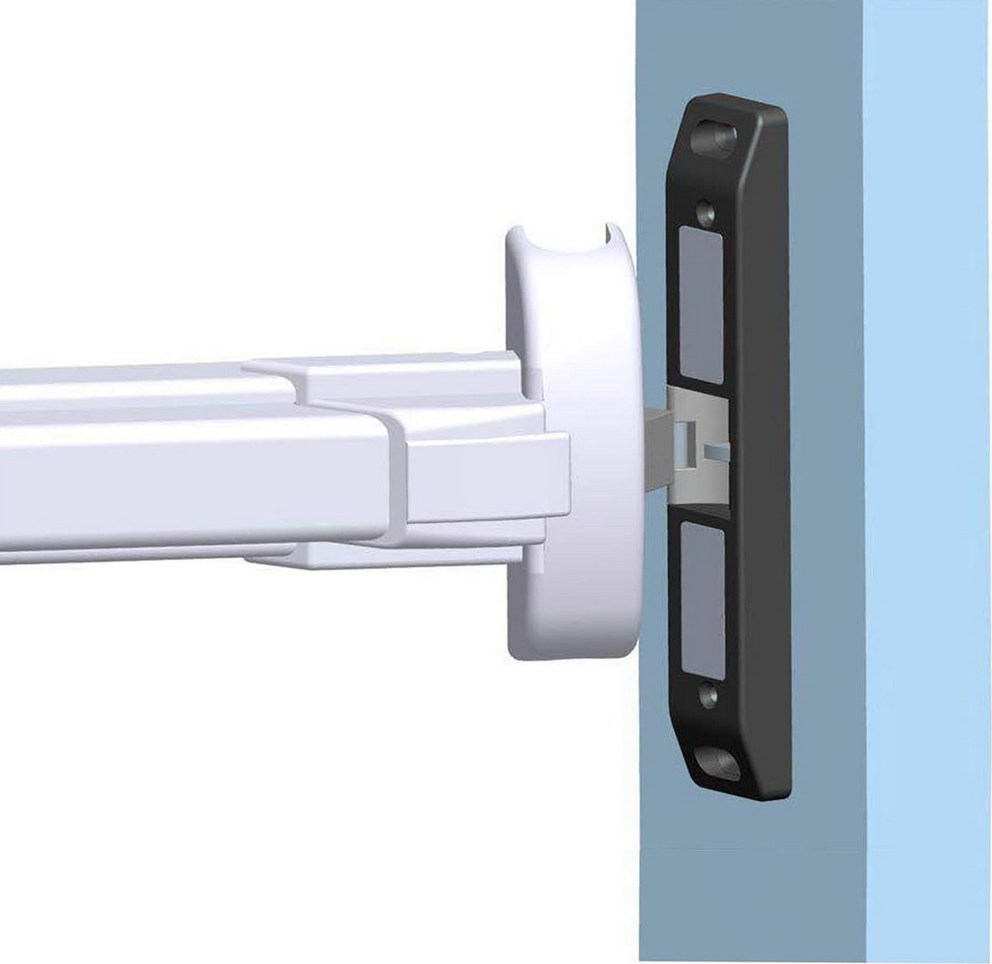

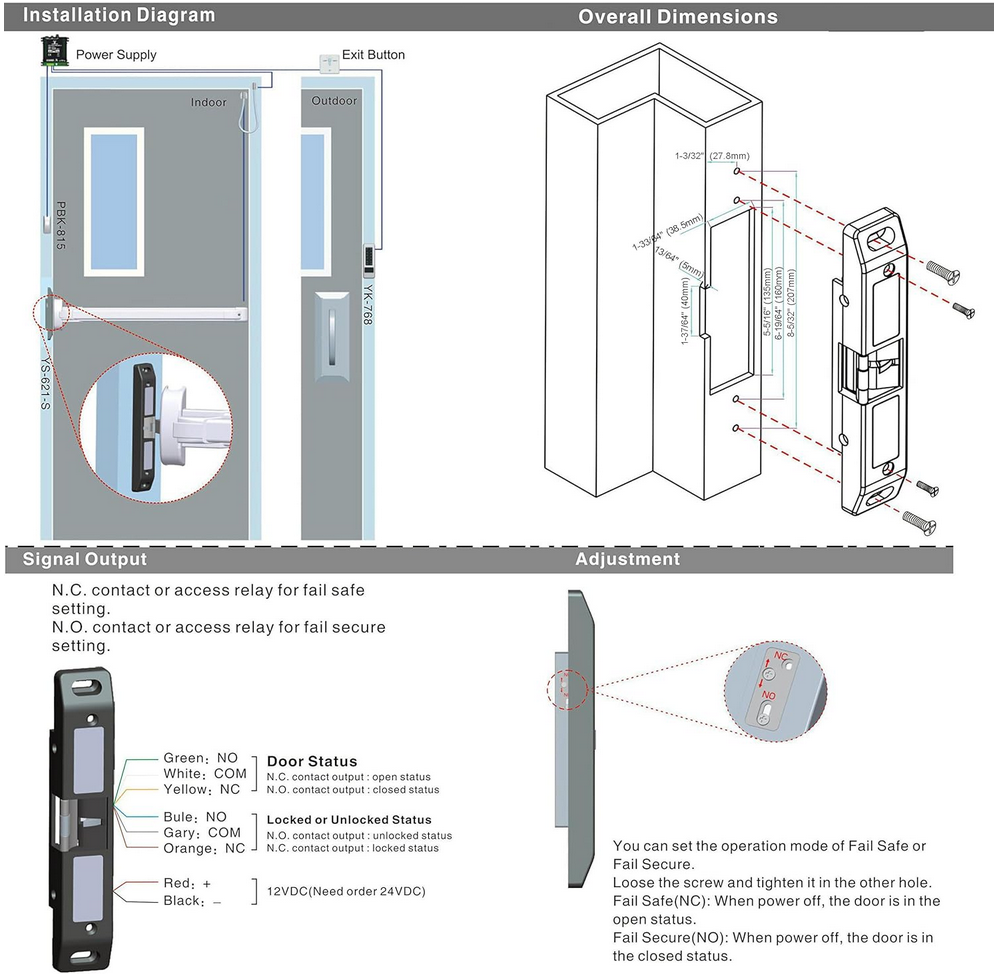

Installation Diagram:

  • Special design: Applies to all brands of fire push rod lock
  • Push panic bar need buy seperately

aplus content image

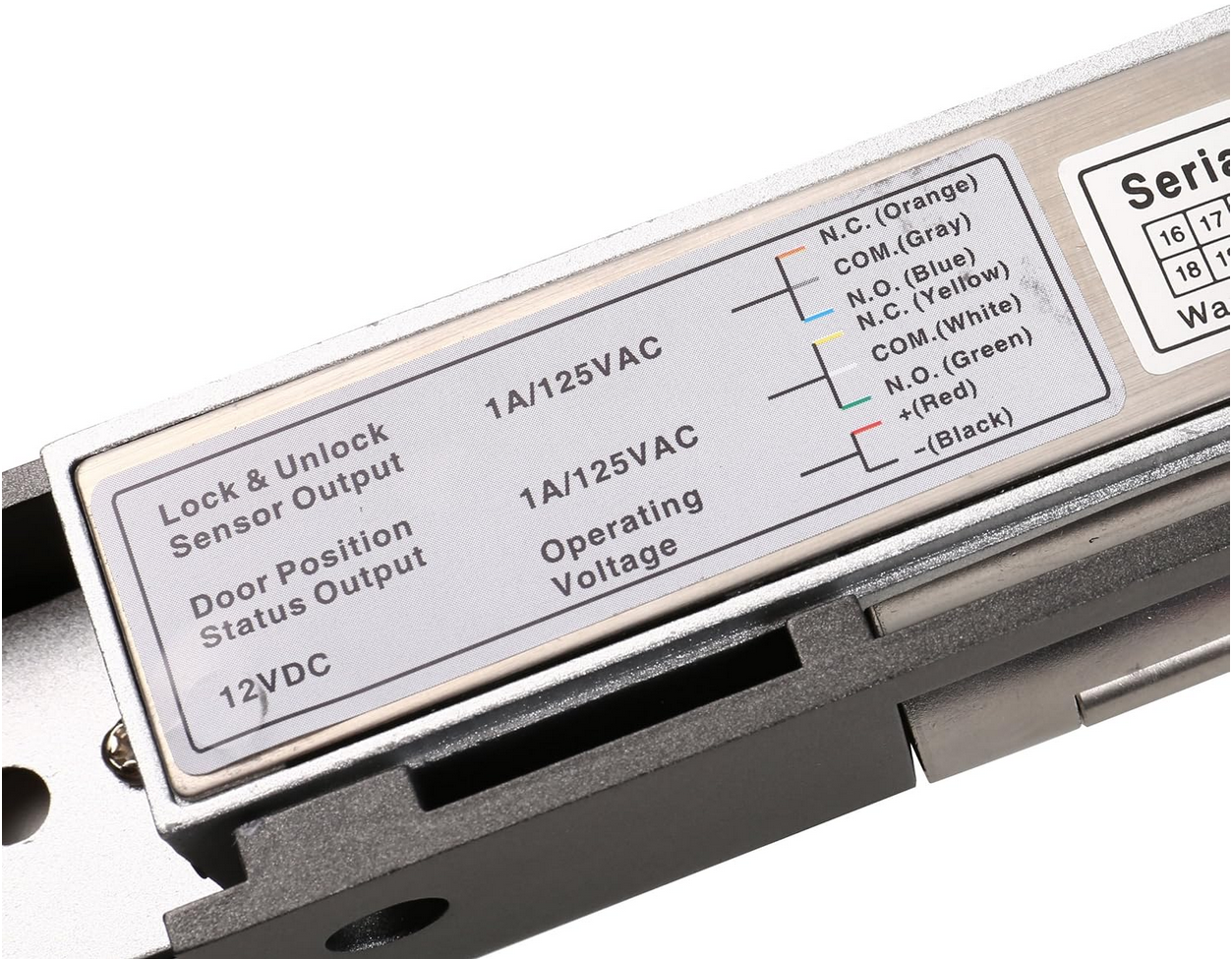

Singal Output:

Door Status:

  • NC contact output: open status
  • NO contact output: closed status
Lock or Unlocked Status:
  • NO contact output: unlocked status
  • NC contact output: locked status

aplus content image

Operation Mode Adjustable:

  • You can set the operation mode Fail Safe or Fail Secure.
  • Please check the working mode before install.

push bar strike lock

Attention:

  • For Indoor use Only
  • Faceplate Dimensions (LxW): 9-1/16"x1-19/32" (230x40.5mm)
  • Before placing order, please check the size of your door’s frame to avoid wrong purchase.
