Xicom 10G RJ45 SFP Copper Module 10G/5G/2.5G RJ45 Port Transceiver 10GBase-T RJ45 Compatible with HPE/Aruba
$35.00
Product information "Xicom 10G RJ45 SFP Copper Module 10G/5G/2.5G RJ45 Port Transceiver 10GBase-T RJ45 Compatible with HPE/Aruba"
1.PRODUCT FEATURES

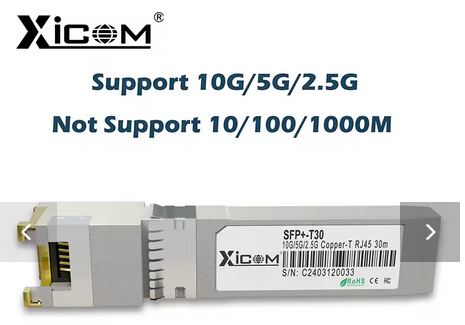

l Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T on line port
l Support 10Gbase-R on host port

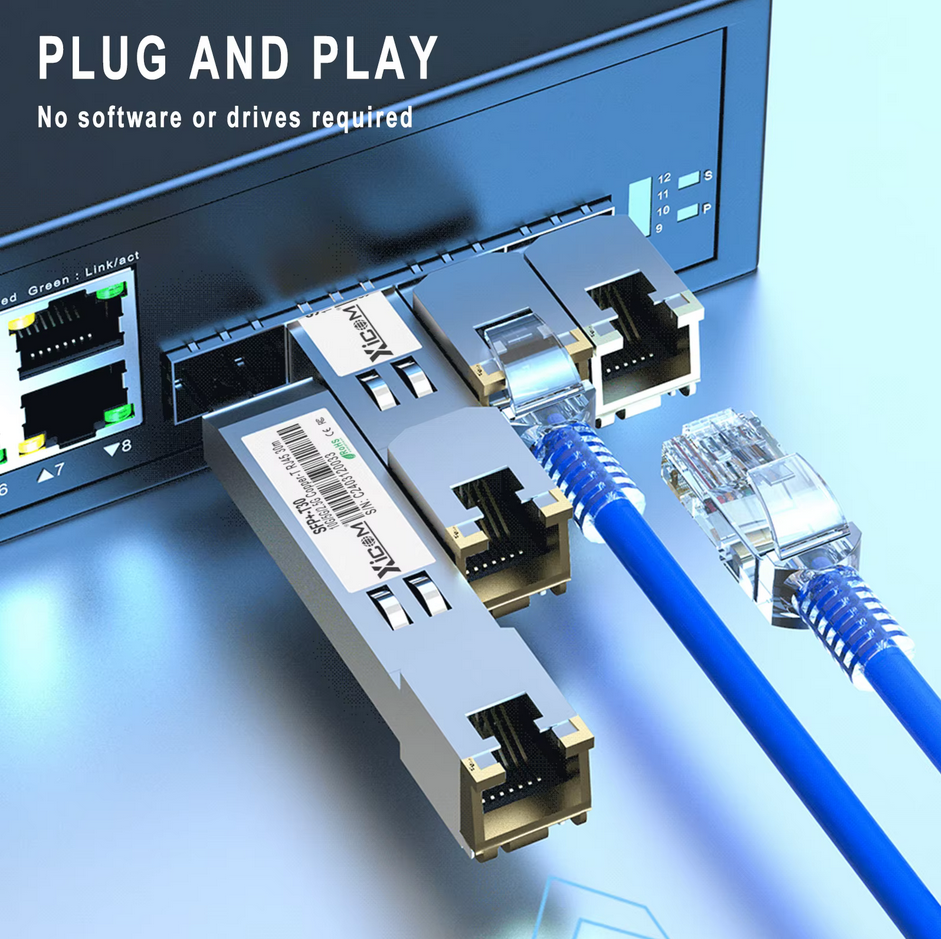

l Hot-pluggable SFP footprint

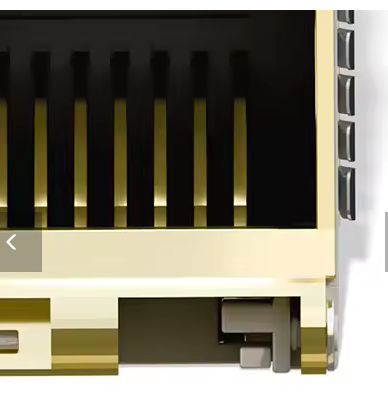

l Compact RJ-45 connector assembly
l RoHS compliant and lead-free
l Single +3.3V power supply
l 10 Gigabit Ethernet over Cat 6a cable
l Ambient Operating temperature:0°C to+70°C
2.PRODUCT DESCRIPTION
10G-T30 Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T standards as specified in IEEE Std 802.3 . 10G-T30 uses the SFP's RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.
