UHPPOTE Interlock Airlock Access Control Relay Module of 2 Two Door for Bank Prison
$70.00
Product information "UHPPOTE Interlock Airlock Access Control Relay Module of 2 Two Door for Bank Prison "
Product details
- Product Dimensions : 2.72 x 2.36 x 0.59 inches; 1.76 ounces

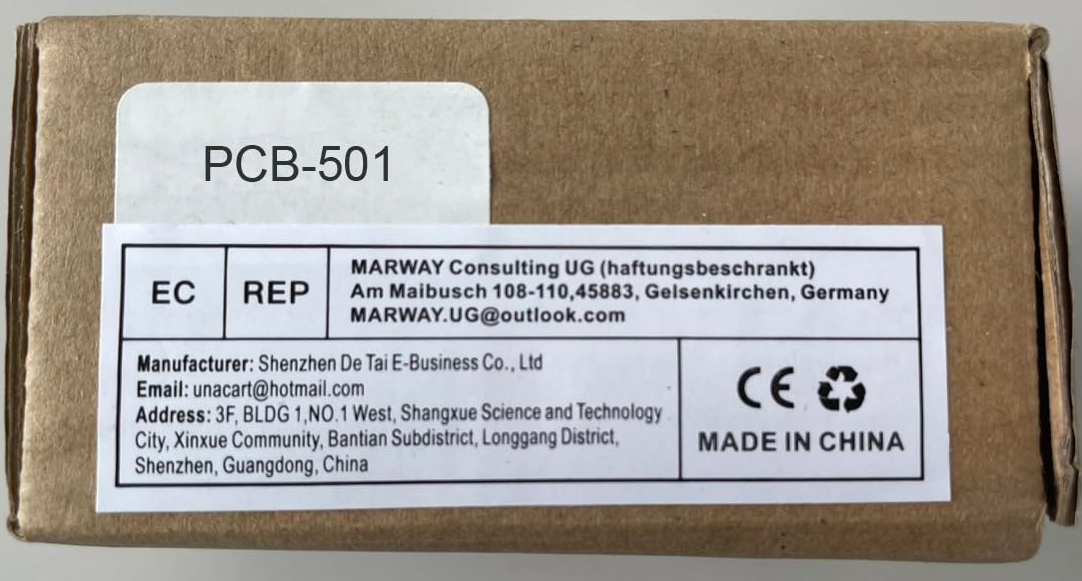

- Item model number : UT-PCB-501
- Date First Available : December 22, 2015
- Manufacturer : UHPPOTE
- ASIN : B019OO3Q4Y
Product Description
Advantage:
Interlocking relay module is an implement for two doors egress
controllilng ,such as bank, prison ect. When the first door opens and
close properly, the second door will open.

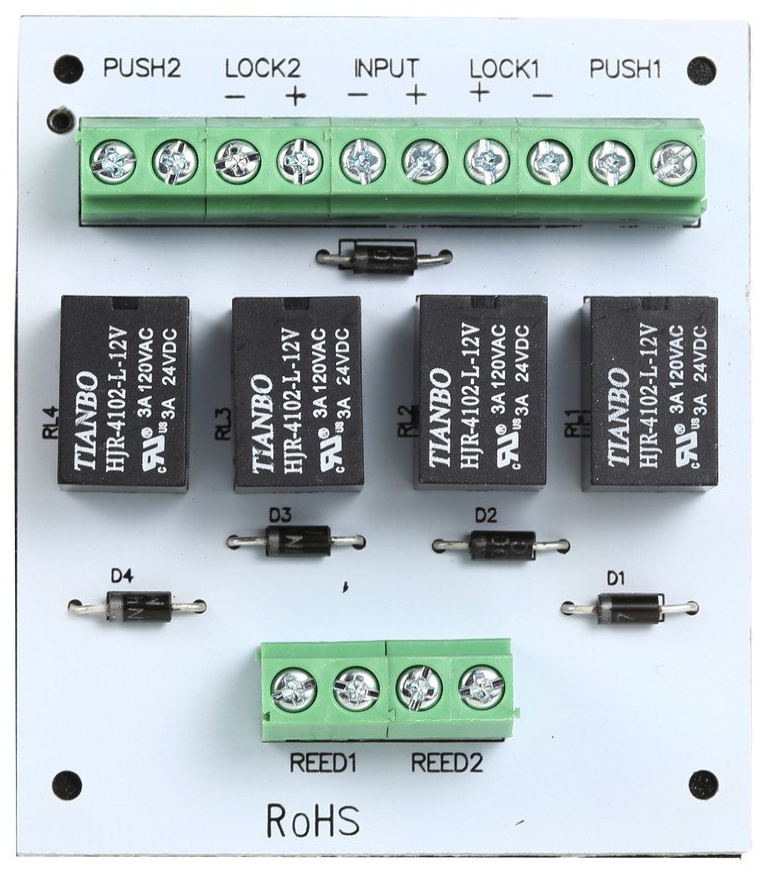

Interlocking relay module
is the ideal choice for the purpose of interlocking door control
project, which is easy to install,professional and durable.
Parameter:

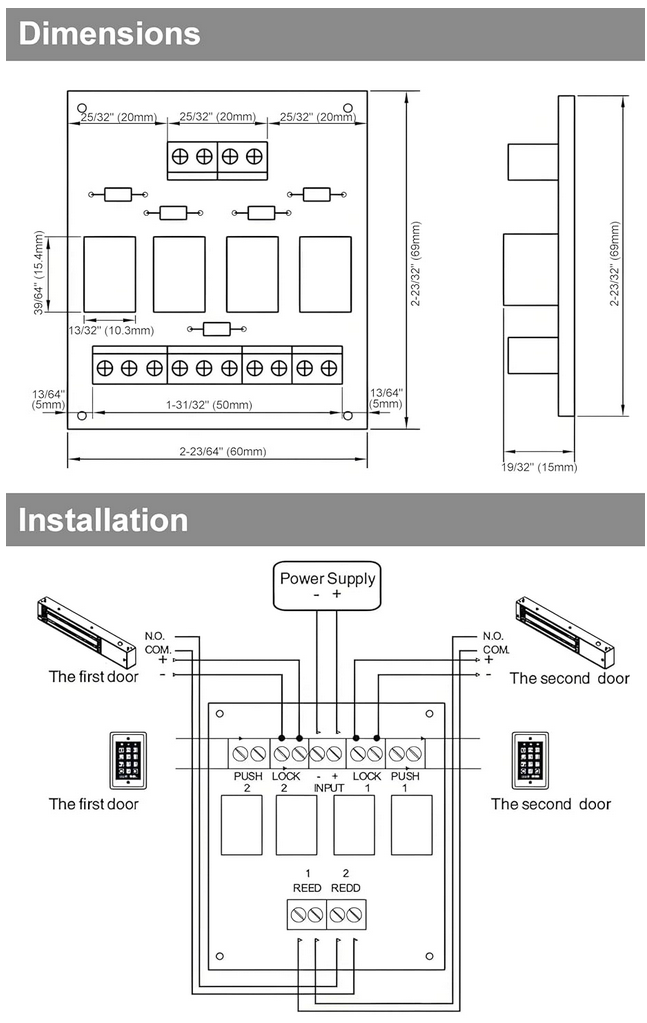

Dimensions: 69Lx60Wx15H(mm) / 2.72Lx2.36Wx0.59H(in)
Material: High quality elements with superb design
Suitable for Door: Fail-safe electric locks with signal output
Output Capability: Applied to double-door interlocking
Operating temp: -20℃~+70℃ / -4℉~158℉
Max.overload: 5A/24V
Weight: 0.07kg / 0.15lb
Package:
1 x Interlock Module of two doors
