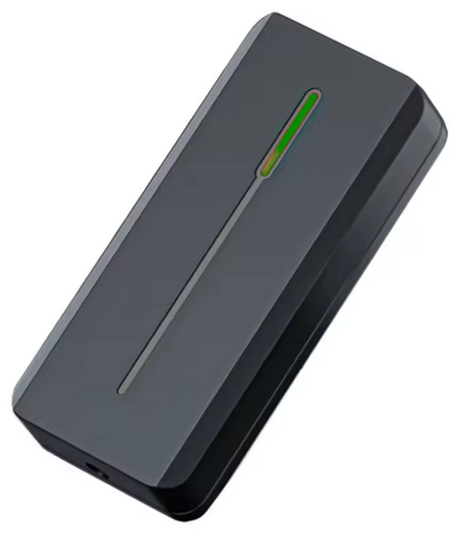

IP68 Waterproof Reader Wiegand Wg26 Wg34 RFID IC ID Card Reader Proximity 125KHZ 13.56Mhz IC for Access Control System
Yistar
$27.00
Product number:
U-P017
Product information "IP68 Waterproof Reader Wiegand Wg26 Wg34 RFID IC ID Card Reader Proximity 125KHZ 13.56Mhz IC for Access Control System"
Special Features:Waterproof / Weatherproof
Place of Origin:Guangdong, China
Brand Name:Yistar
Model Number:UP009 125khz 13.56mhz smart card reader
Item name:125khz 13.56mhz smart card reader
Operating Voltage:8-18V DC
Card type:ID 125khz / IC 13.56mhz (Optional)
Reading Distance:2-5 cm

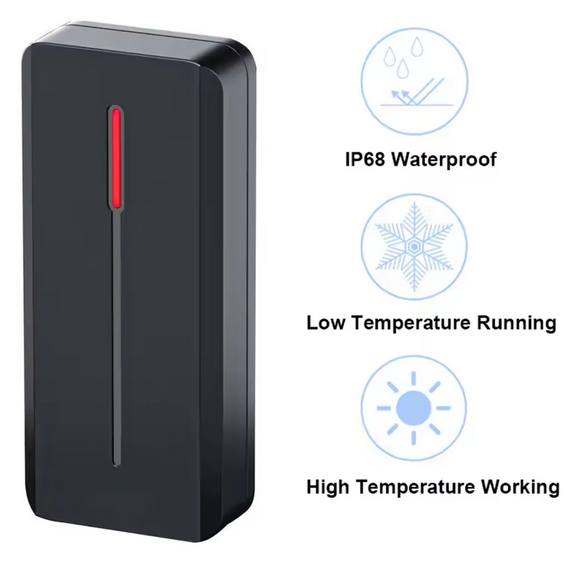

Waterproof:Conforms to IP68

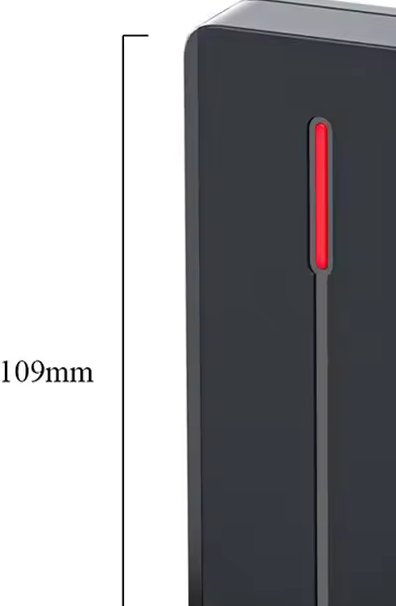

Dimension:109*47*20 MM
Quiescent Current:≤30mA
Operating Temperature:-10℃~70℃
Operating Humidity:10%- 90% RH
Features:
> Material: Plastic case
> Very low power consumption,standby current less than 30mA
> WG 26 Input and Output
> Fast Search speed : time between reading card and opening the door is less than 0.1S
Place of Origin:Guangdong, China
Brand Name:Yistar
Model Number:UP009 125khz 13.56mhz smart card reader
Item name:125khz 13.56mhz smart card reader
Operating Voltage:8-18V DC
Card type:ID 125khz / IC 13.56mhz (Optional)
Reading Distance:2-5 cm
Waterproof:Conforms to IP68
Dimension:109*47*20 MM
Quiescent Current:≤30mA
Operating Temperature:-10℃~70℃
Operating Humidity:10%- 90% RH
Features:
> Material: Plastic case
> Very low power consumption,standby current less than 30mA
> WG 26 Input and Output
> Fast Search speed : time between reading card and opening the door is less than 0.1S
Features
Model Number | U-P017 |
Type | Card |
Special Features | Waterproof / Weatherproof |
Network | Wiegand |
Application | Outdoor |
Waterproof degree | IP68 |
Operating Voltage | DC 8V~18V |
Card reading type | 125KHZHz RFID/13.56MHz IC(Optional) |
LED Indicator | Red and Green |

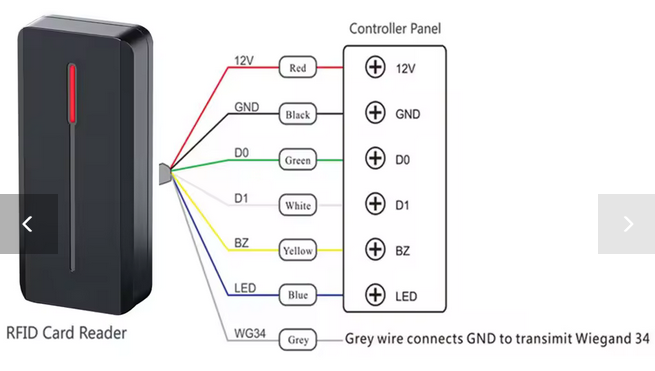

Communication format | WG26 / WG34 (Optional) |
Read Range | 2~5CM |
Humidity | 10~90°C |
Size | 110*48*20(mm) |
Static electricity | ≤35mA |
Ambient temperature | -10~70°C |
