Fanless Firewall Mini PC 4X 2.5GbE i226 Ethernet Gigabit LAN NIC Intel N100(up to 3.4GHz) Network Gateway Soft Router, 6*USB/HD/COM/VT-x/Apo/WOL/ 8GDDR4 128G M.2 SSD (Intel N100)

Skip image gallery

$310.00

Product number: N100

Product information "Fanless Firewall Mini PC 4X 2.5GbE i226 Ethernet Gigabit LAN NIC Intel N100(up to 3.4GHz) Network Gateway Soft Router, 6*USB/HD/COM/VT-x/Apo/WOL/ 8GDDR4 128G M.2 SSD (Intel N100)"

About this item

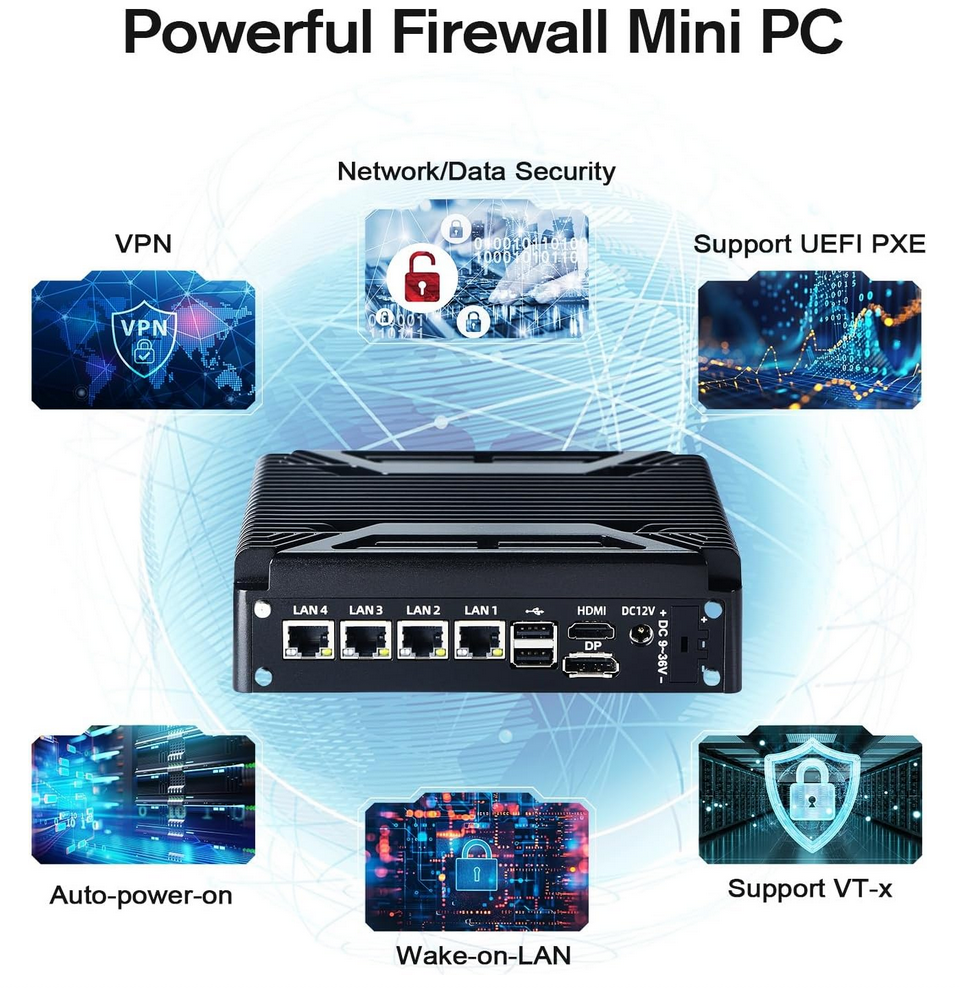

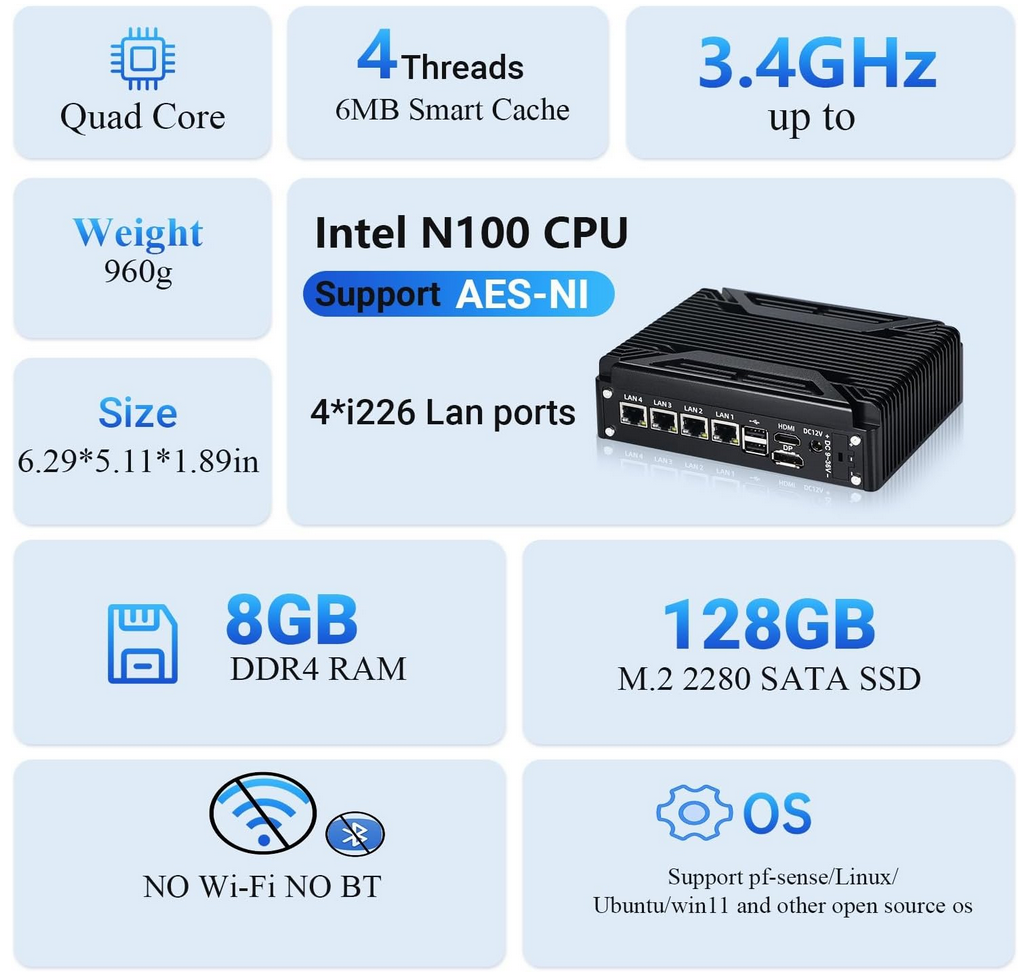

  • 【 Intel N100 CPU & OS】This 4 nic firewall mini pc uses powerful Intel N100 CPU up to 3.40GHz, 4 cores 4 threads 6M Cache, Support VT-x / Apo / WoL; It tested with pf-sense, linux ubuntu and more open-source firewall systems, etc. Support Auto Power On ("DEL" key to enter BIOS).

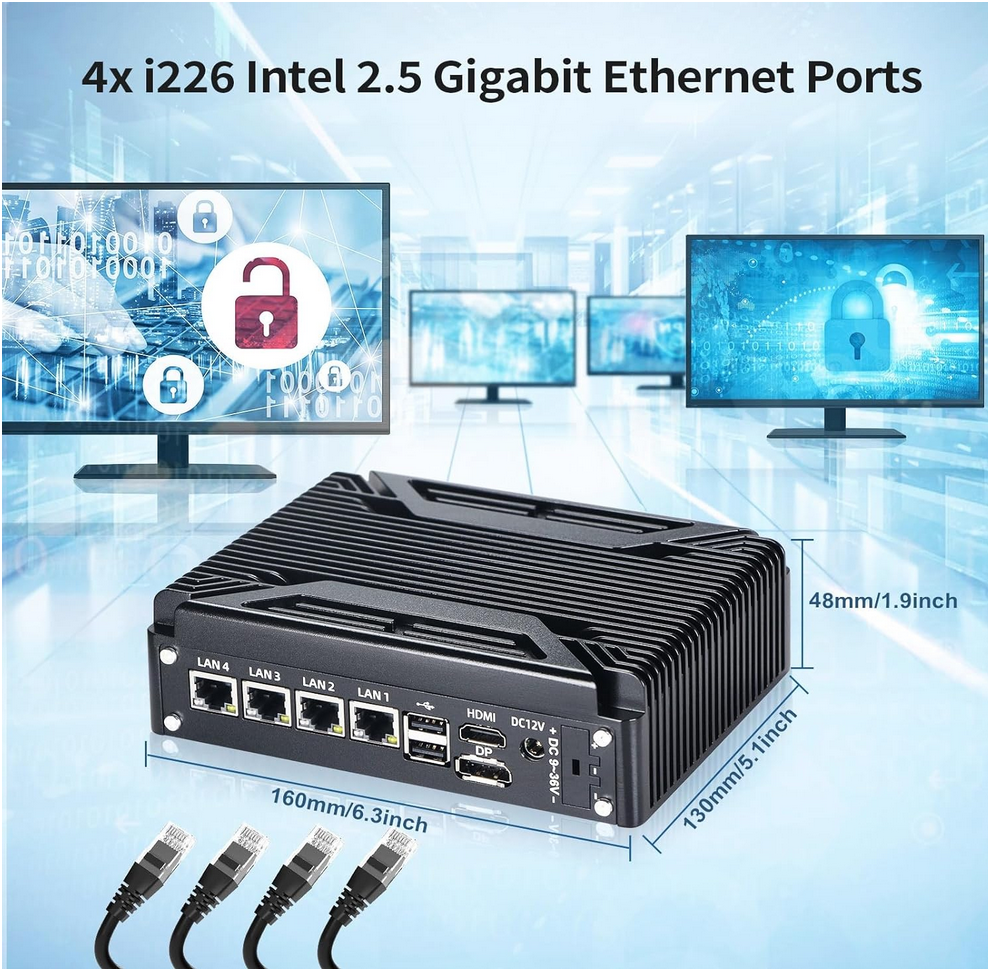

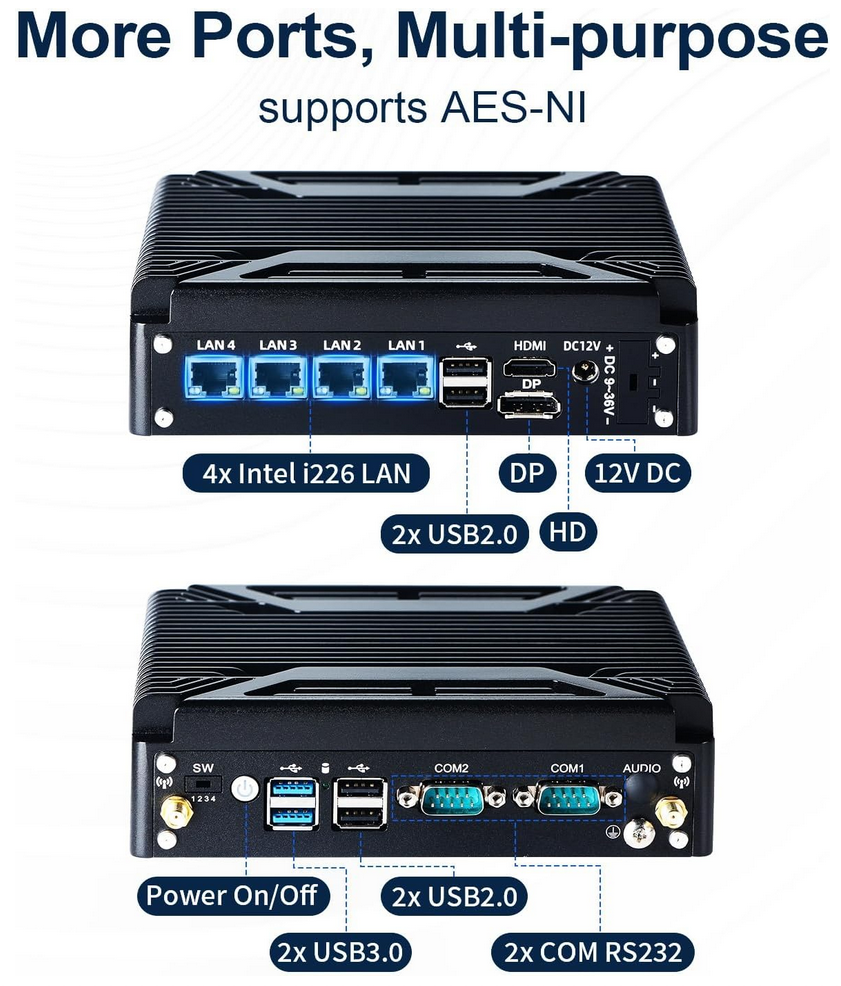

  • 【4x i226 Intel Gigabit Ethernet ports】This fanless mini pc all uses Intel i226 chip, supports 4x gigabit ethernet to keep stable and high speed. It has a good compatibility for soft routing, firewall and other network applications. This compact pc has more I/O Interface to meet your more needs: 4x LAN, 2x RS232 COM, 2x HD, 2x USB3.0, 4x USB2.0, 1x 12V5A DC .
  • 【8G DDR4 RAM & 128G M.2 SATA SSD】 This little firewall box comes with 8GB DDR4 128GB M.2 2280 SATA SSD. The memory has 1*SO-DIMM DDR4, max support 16GB. The storage can max support 4TB, not Support HDD expansion. Large storage can meet the hardware requirements of different network security firewall software and hypervisor applications.

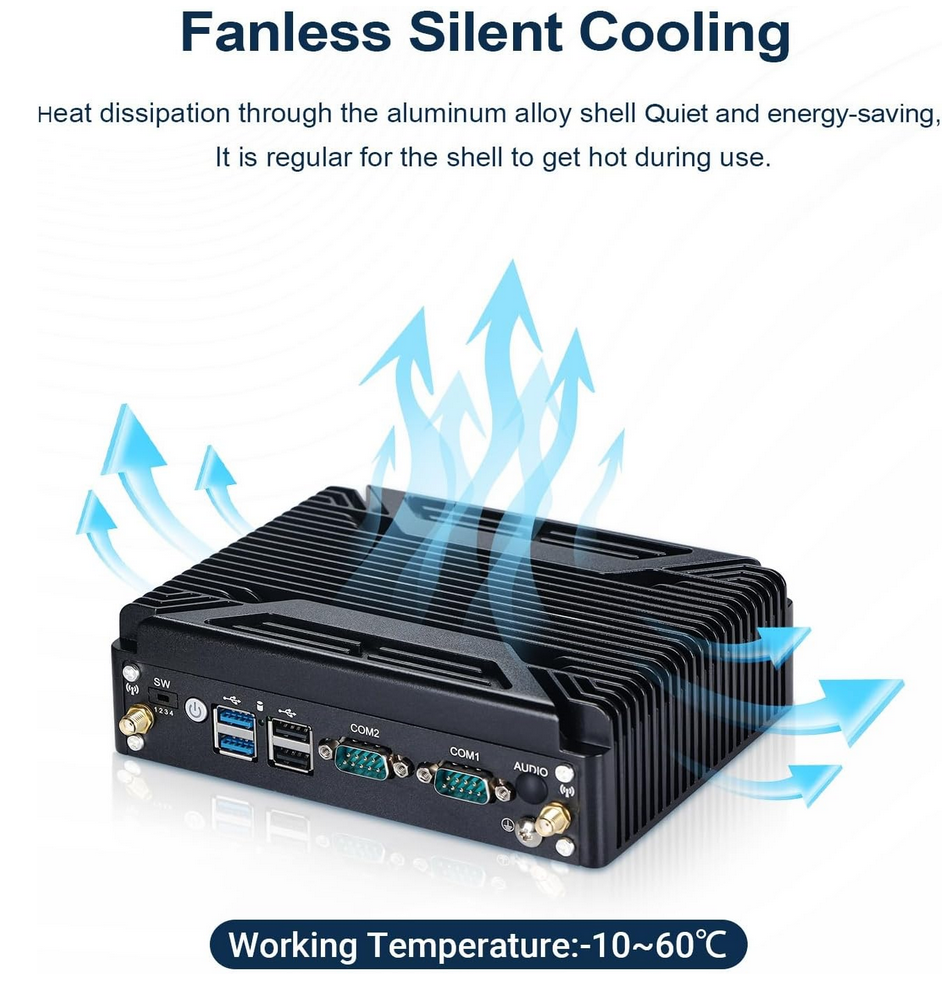

  • 【Fanless Design】Fanless Silent CoolingQuiet, dustproof and energy-savingHeat dissipation through the aluminum alloy shell,It is regular for the shell to get hot during use,UP TO 60℃/140F° and the processor only has a 6W TDP to maintain low power consumption to save energy and 24/7 hours quiet running.

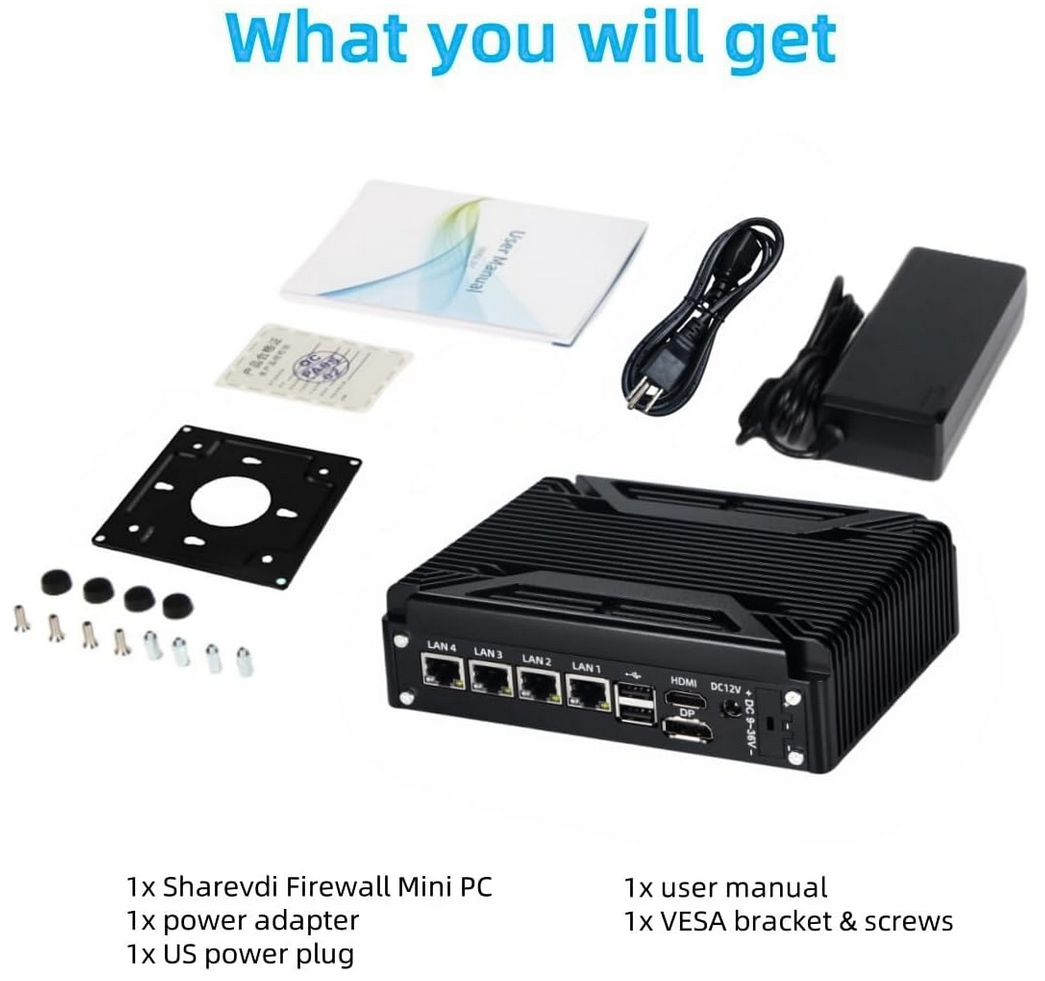

  • 【12-Months Service】You will get Sharevdi Mini PC x1 (size 16*13*4.8cm weight 960g), US 3pin power adapter x1, user manual x1, VESA bracket x1.If you encounter any problems during the use, please contact us, we have a professional and efficient team dedicated to serving you.

Additional Details

Operating System Firewall OS
Specific Uses For Product VPN and so on, professional firewall mini pc, soft router for People who know the firewall system
Personal Computer Design Type Mini PC
Additional Features 8G DDR4 128GB M.2 SATA SSD, Fanless silent cooling, Industrial style aluminum alloy shell
Hard Disk Description SSD
Hardware Interface DisplayPort, Ethernet, USB 3.0
Power Consumption 6 Watts
Item Dimensions 5.12 x 1.89 x 6.3 inches
Item Weight 1.66 Kilograms
Video Output Interface HD
Hard Disk Interface Solid State
Style Name Industrial style
Cooling Method Fanless silent cooling
Compatible Devices Keyboard, Monitor, Mouse, Projector, Television
Power Plug Type Type B - 3 pin (North American)

Graphics

Graphics Description Integrated
Graphics Coprocessor Intel® UHD Graphics
Graphics Ram Type DDR4 SDRAM
Graphics Card Interface Integrated

Processor

Processor Series Intel N100
Processor Speed 3.4 GHz
Processor Socket FCBGA1264
Processor Count 4
 CPU Model Speed Maximum 3.4 GHz

Ports

Total USB Ports 4
Total Number of HDMI Ports 4
Number of Component Outputs 2

Input Devices

Human-Interface Input Mouse
Keyboard Description not included Keyboard or Mouse

Memory

Cache Memory Installed Size 6 MB
Memory Storage Capacity 8 GB
Memory Slots Available 1
RAM Memory Installed 8 GB
RAM Memory Technology DDR4
Ram Memory Maximum Size 16 GB
Memory Speed 4800 MHz
RAM Type DDR4 SDRAM
Memory Clock Speed 4800 MHz

Display

Display Resolution Maximum 3840x2160 Pixels
Resolution 4096*2304@60HZ
Native Resolution 4096 x 2304

Connectivity

Wireless Network Technology Wi-Fi
Connectivity Technology Ethernet
Wireless Technology no Blue-tooth; no wi-fi
