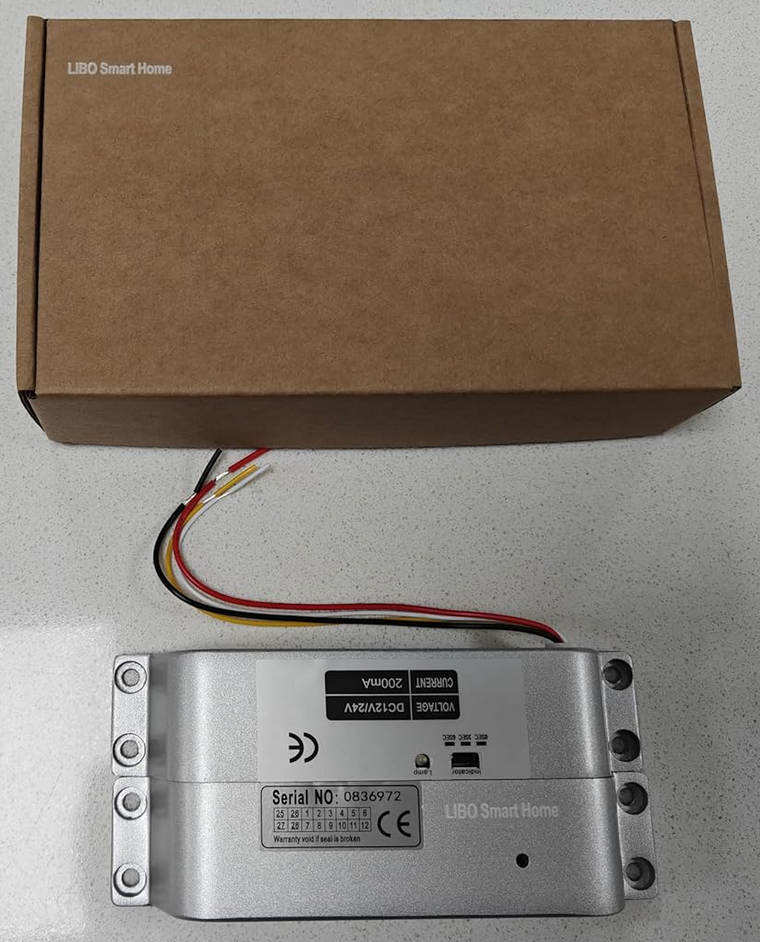

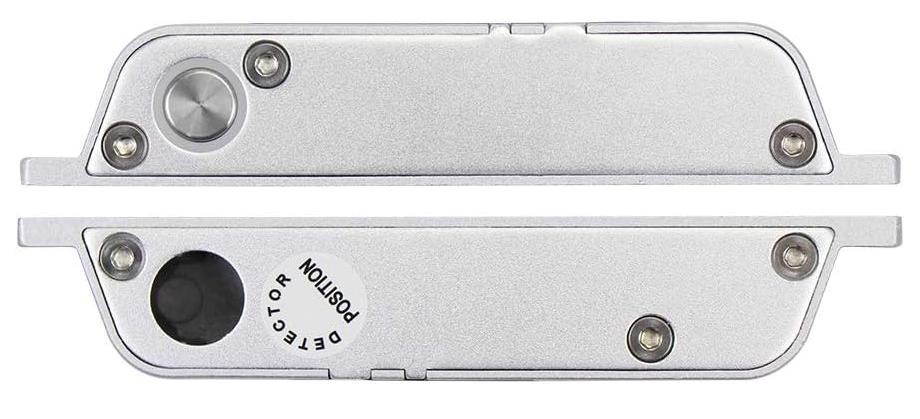

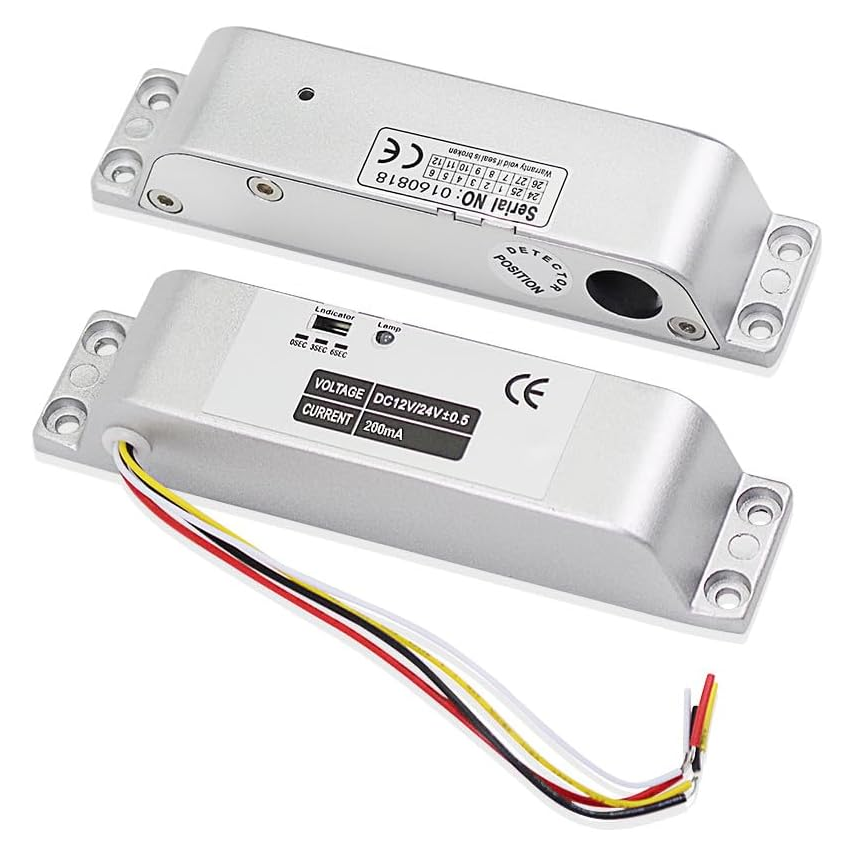

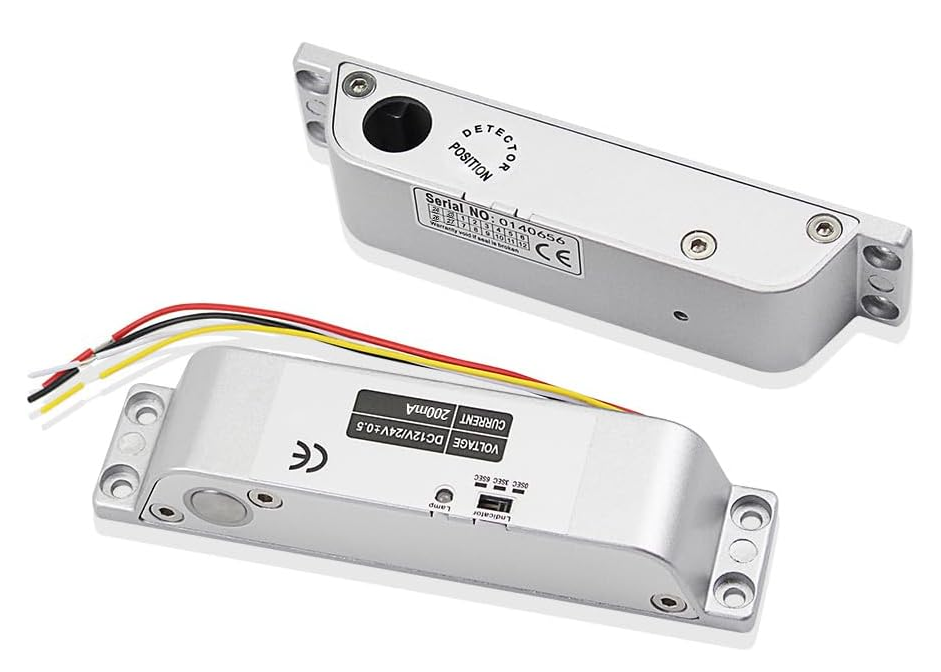

Electric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay

Skip image gallery

$45.88

Product number: L-XXS

Product information "Electric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay"

Brand LIBO Smart Home
Special Feature Electric
Lock Type Electronic Lock
Item dimensions L x W x H 5.91 x 1.34 x 1.1 inches
Material Aluminium Metal

About this item

1. NC mode - (locked while supplied with power), fail safe mode.

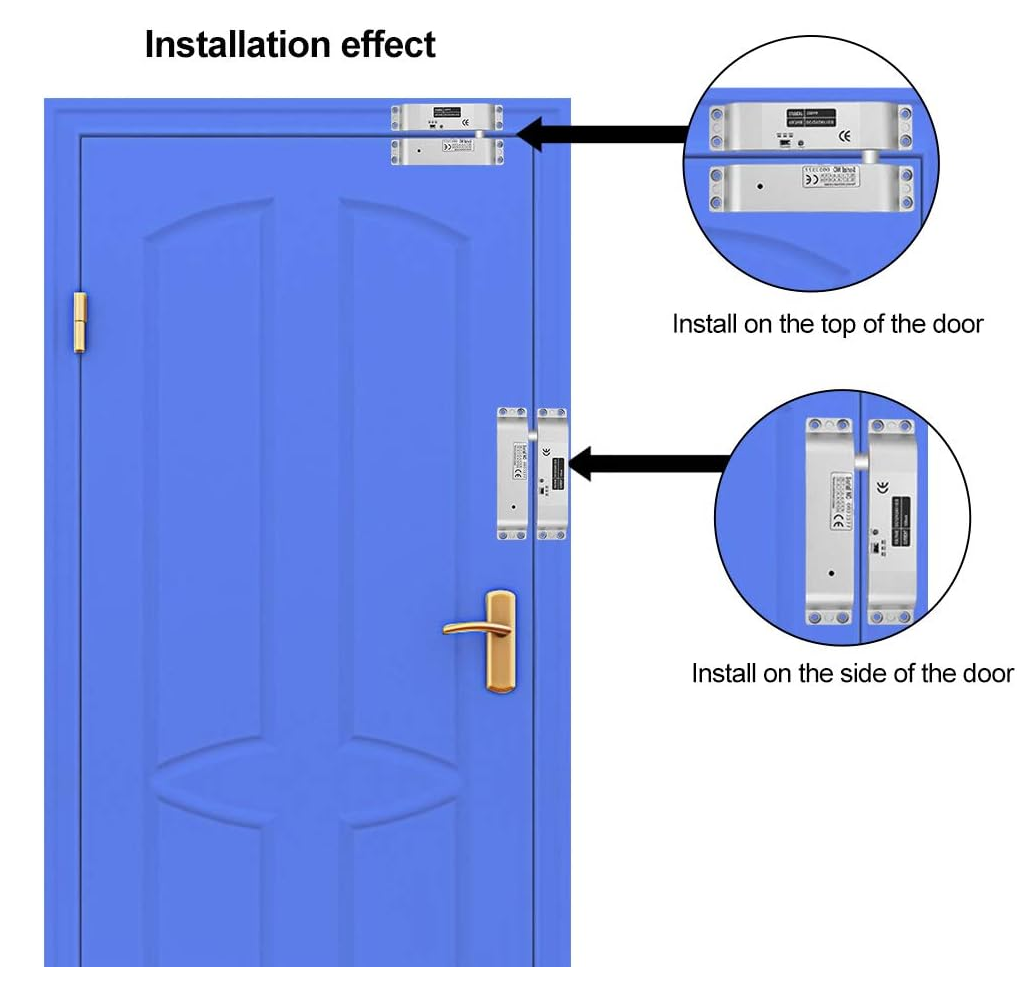

2. Installation: unfold install (surface mounted).
3. Material: Aluminum alloy material.
4. With time delay: 0s, 3s, 6s.
5. Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
6. Surface scrub treatment, durable and wear-resistant.
7. Lock body use hexagon screw, fixed panel, anti-theft and more security.

Specifications:
Model Name: L-XXS

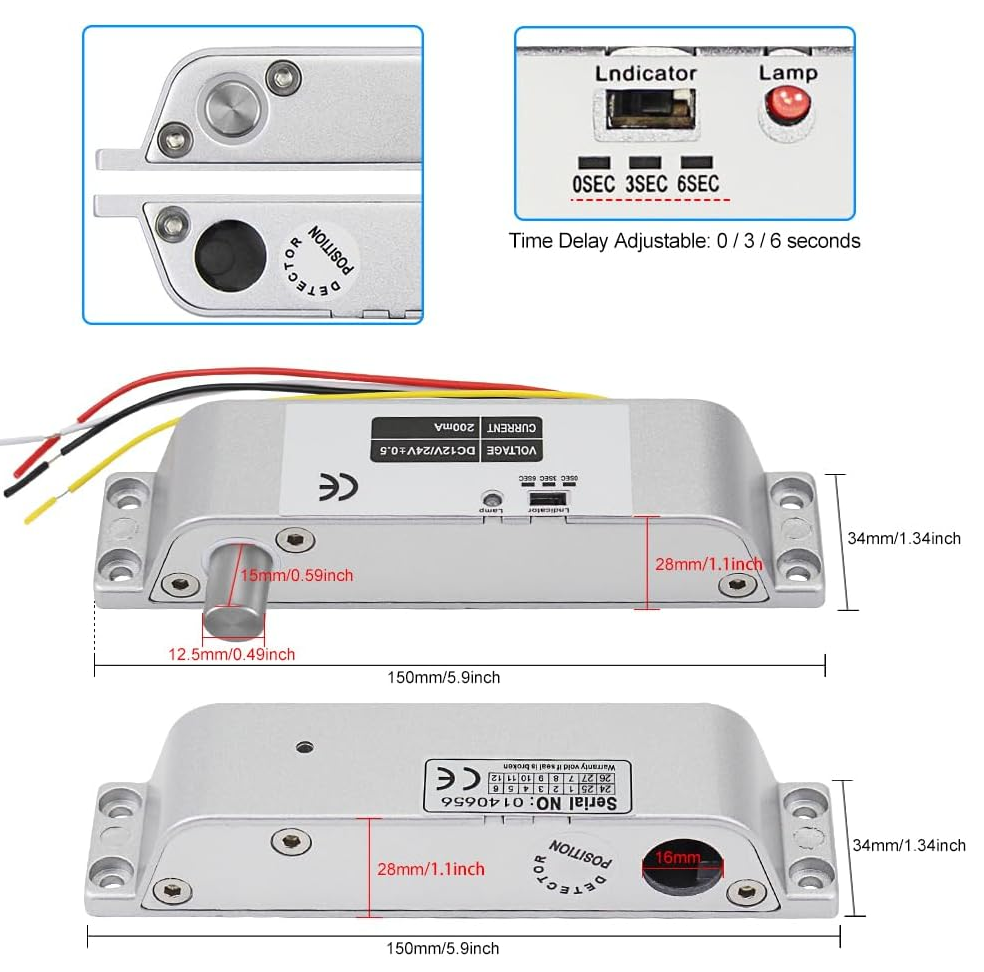

Dimensions: 150x34x28mm
Lock core: The diameter 12.5MM, extending the length of 15MM
Working Voltage: DC12V
Working current: Start state 1.2A Persistent state 120mA
Operating Mode: NC (locked while supplied with power), fail safe mode
Wires: red to "NC", black to "GND".
Warm Note: yellow line and white line are useless, don't need to be connected.


 Package Including:
1 x Electric Drop Bolt Lock
1 x Bag of installation kit
