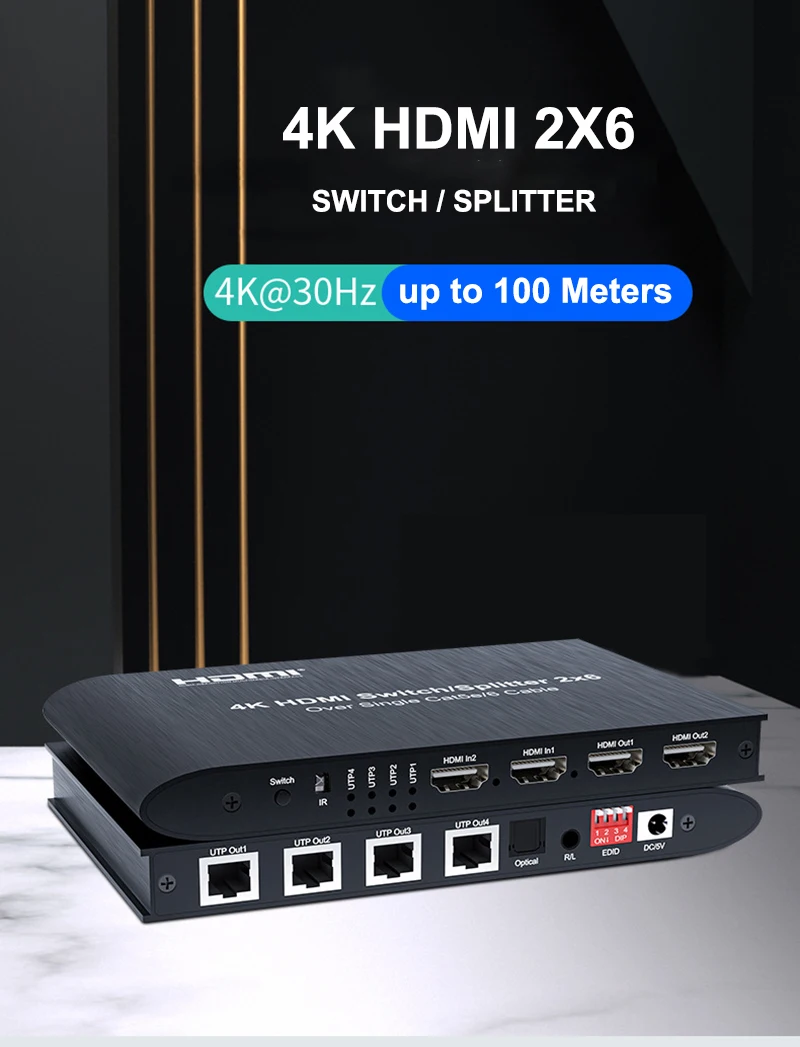

4K 2x6 HDMI 4K Switch Splitter Audio Video Converter with 2 HDMI IN 2 Out 4 RJ45 Output with 4 RJ45 Extender Receiver

4K 2x6 HDMI Switch/ Splitter/Extender -- optional

Introduction :

Brand new and high quality,buy with confidence !

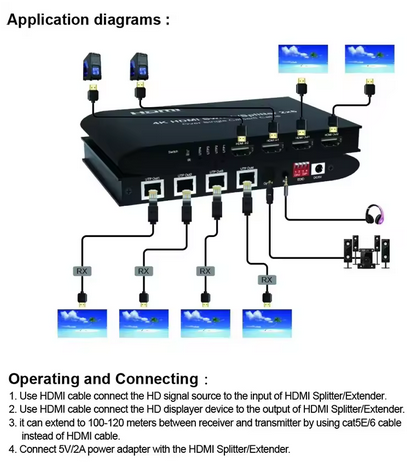

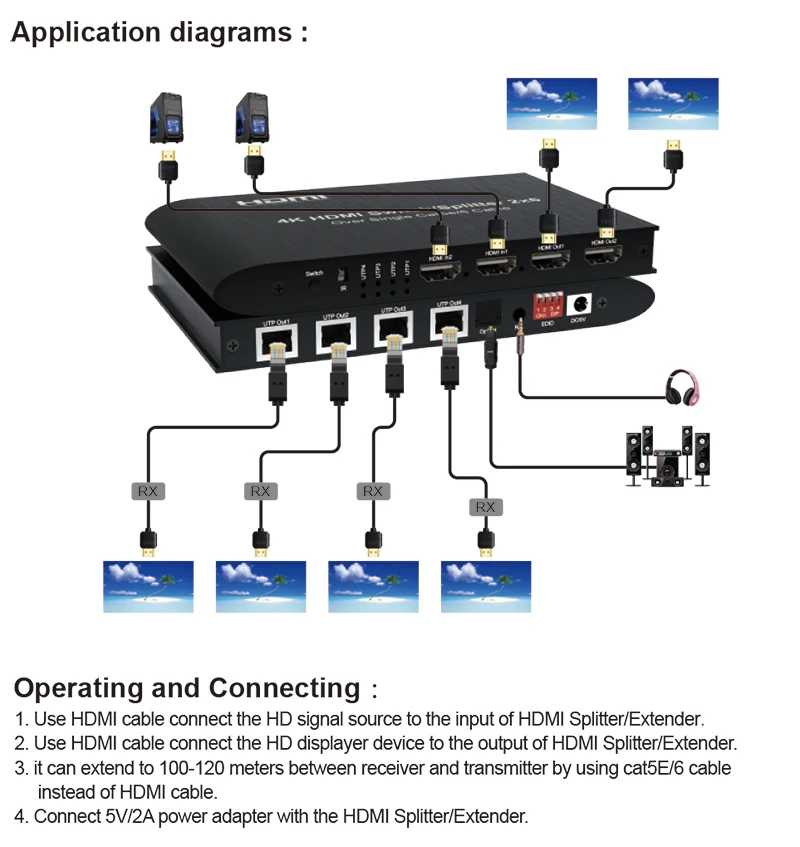

This 2x6 HDMI Switch/Splitter over single Cat 5E/6 cable which can connect 2 HDMI signals sources to up to
6 HDMI display terminals,It can easily split 1 HDMI signal up to 6 HDTV or HDMI projector or monitors.

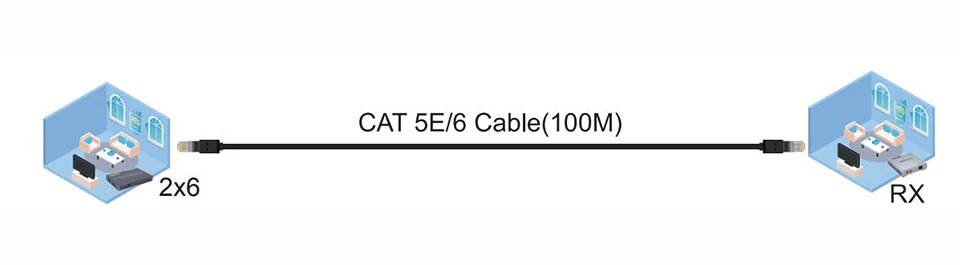

And it can extend HDMI signal up to 100m-120m by one cat5E/6 ethernet cable-----this function needs to be
used with 4K RJ45 Cat6 ethernet cable,the RX/ Receiver is Optional,is not included in the 2x6 Switch/Splitter


Pls Note:

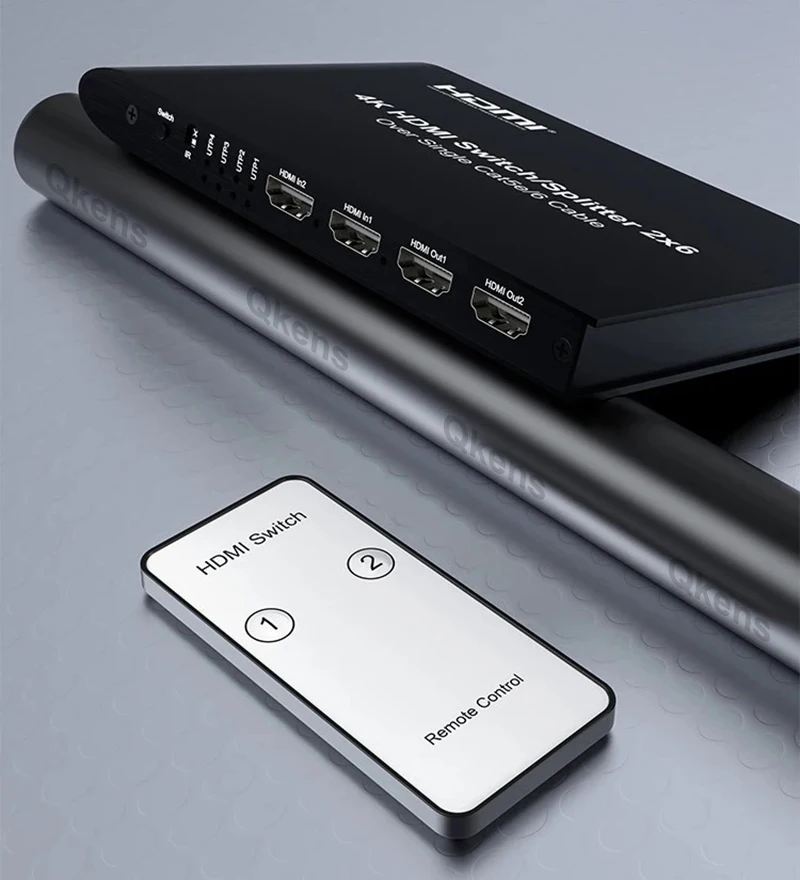

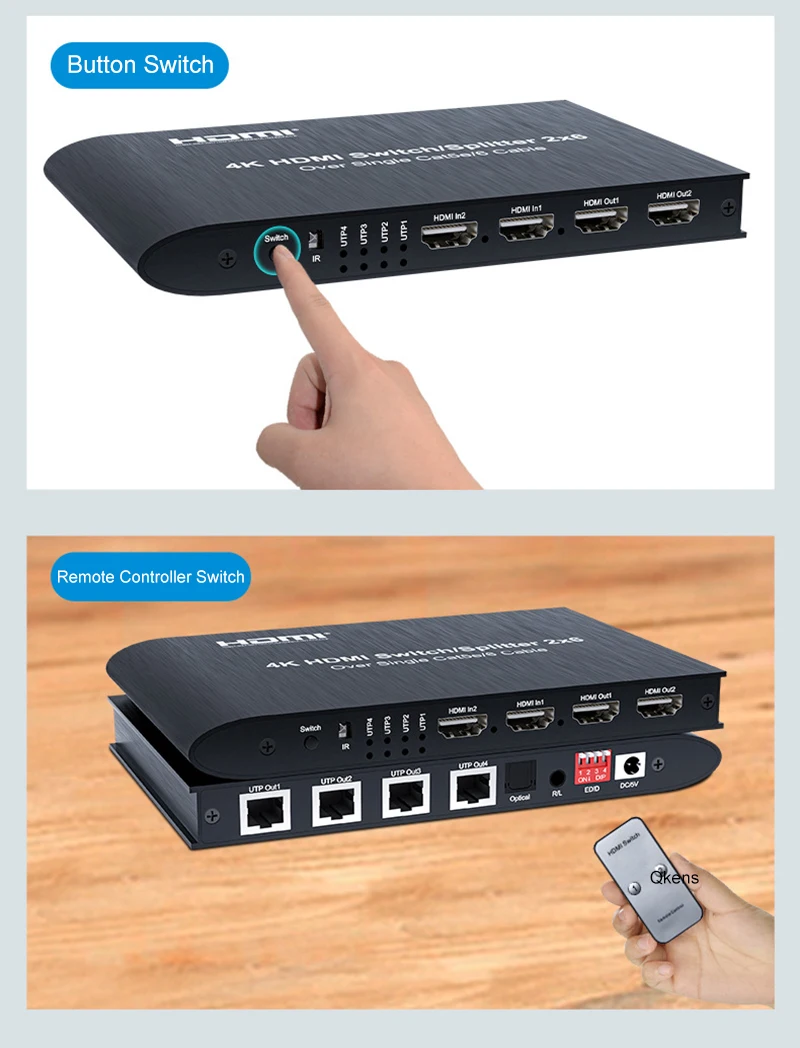

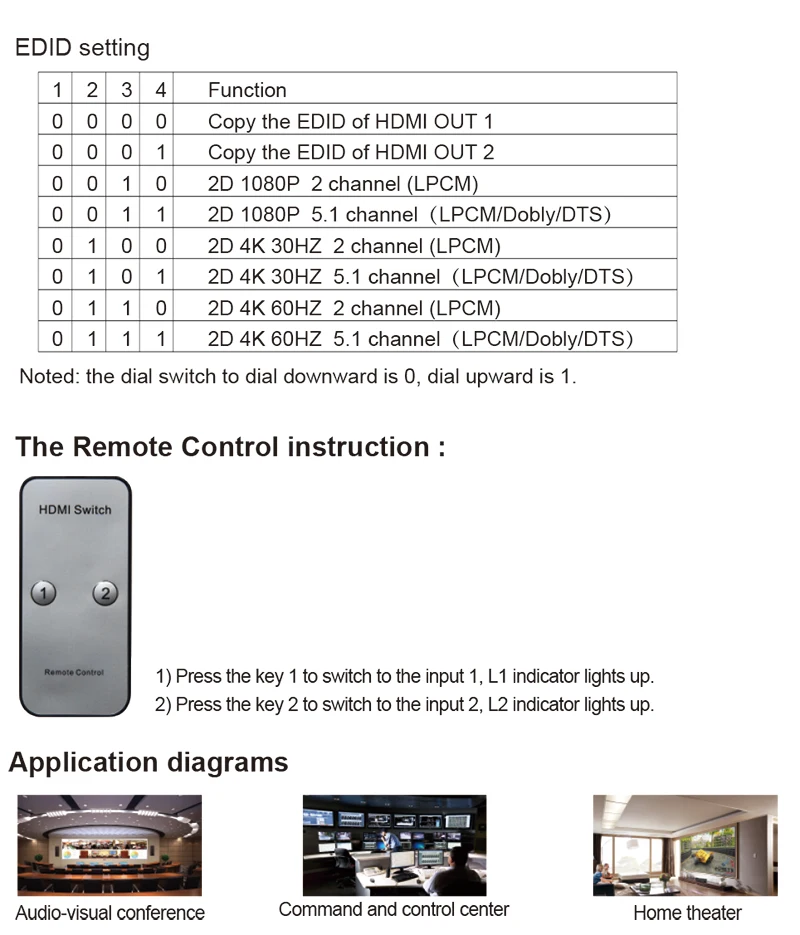

1. it is 1 remote control for the 2x6 splitter.  you have always the same signal to all 6 outputs,
if you switch to input 1, the outputs all are input 1 singal,
if you switch to input 2,the outputs all are input 2 signal

2.We will send the power plug randomly, if you have specified demand,pls tell us in "Buyer's Note" when
placing an order.

Features :

1.Long distance transmission up to 100M.

2.Video transmission up to 4K/30Hz,and support 720P/1080P standard regular format.
3.Support 4-ways UTP extension


SPECIFICATIONS :

HDCP version ....................................................................................... HDCP 1.4
HDMI resolution .................................................... 4K30/1080p/1080i/720p/576p/480p
Support video format .............................................................. 24/30/36 bit deep color
Support audio format .............................. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

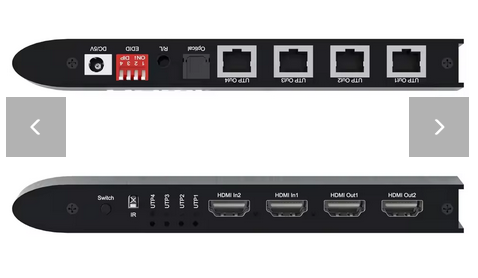

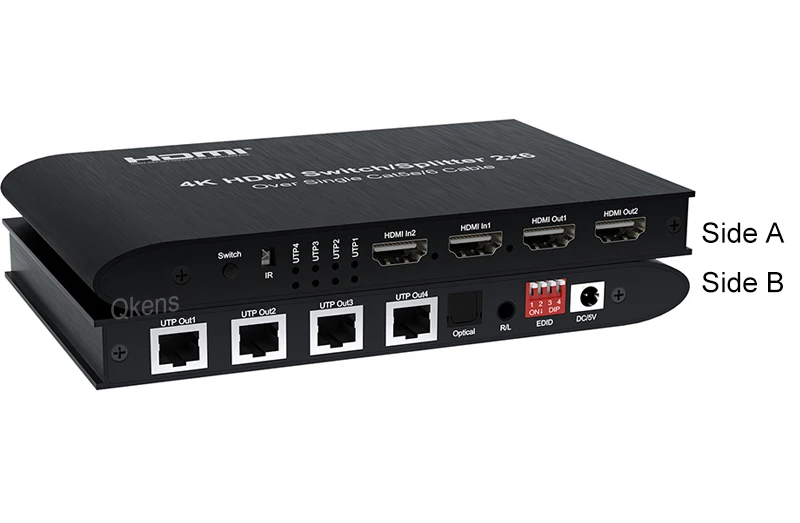

HDMI input port .................................................................................................. 2
HDMI output port ................................................................................................ 2
RJ45 port ............................................................................................................ 4
Max bandwidth ....................................................................................... 340MHz
Max baud rate .................................................................................. 3.4Gbps x10
Input cable distance ......................... AWG26 HDMI 1.4 standard cable up to 15 meters
Output cable distance ................................. Cat5e/cat6 standard cable up to 100 meters
Max working current ................................................................................. 1600mA
Power adapter format ........................... AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range .......................................................... (-15℃ to +55℃)
Dimension (L x W x H) ..........................................................approx. 173x114x19 (mm)
Weight ..................................................................................................approx. 326

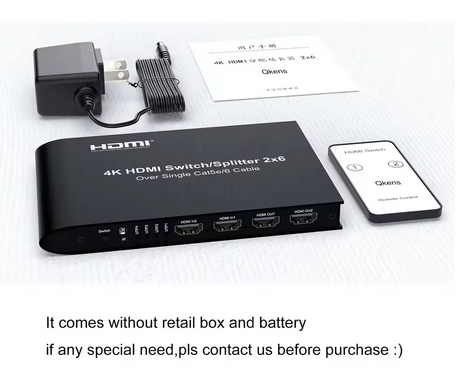

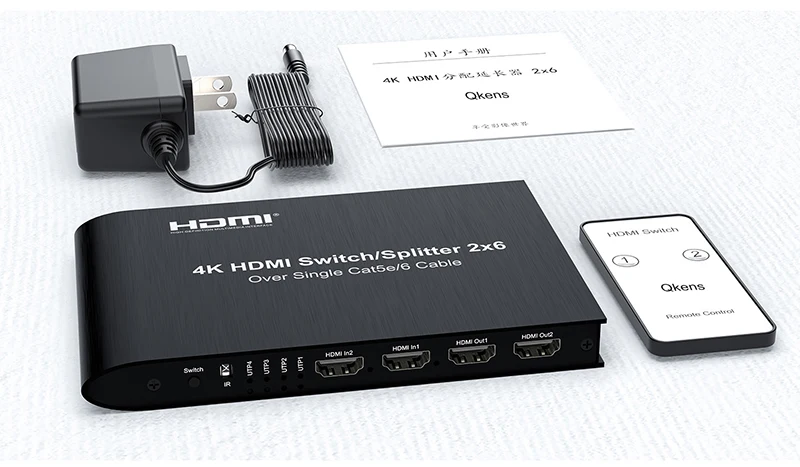

Package Content for 4K 2x6 Switch/Splitter :

1. 4K 2x6 HDMI Switch/Splitter 1PCS
2. IR Remote Control without battery 1PCS
3. Power adapter 1PCS
4. User Manual 1PCS

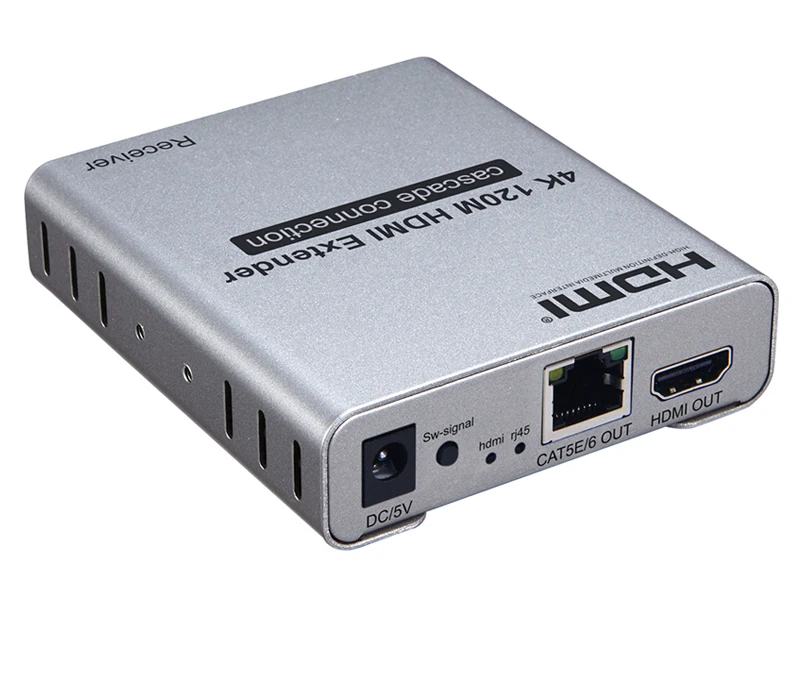

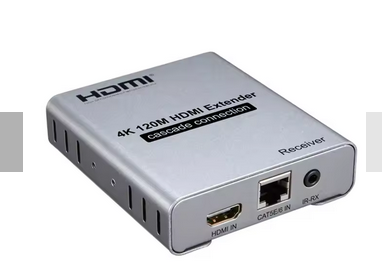

Package Content for 4K 120M Receiver:

1. 4K 120m Receiver 1PCS
2.Power Adapter 1PCS
3. User Manual 1PCS

No retail box and other accessories,if any need,pls contact us before purchase.

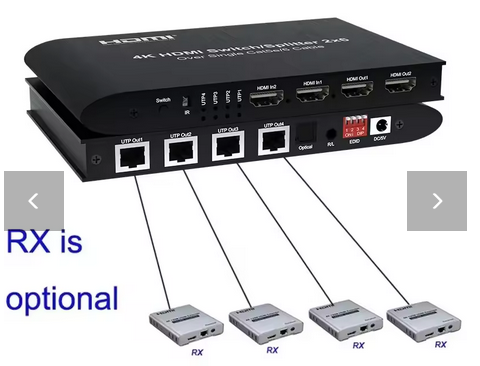

Pls note : the 120m RX is optional--- max. need 4 RXs to match one 2x6 HDMI Switch/Splitter Device
if you do not want to use the ethernet cable extension function,no need to buy the RX.
